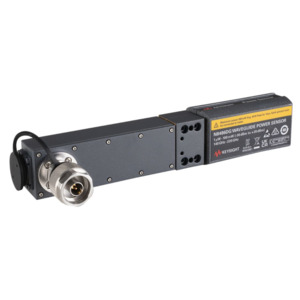

Keysight N8486DG/100 Diode Waveguide G-Band Power Sensor

Features and Specifications

• Better accuracy with a limited dynamic range

• Frequency coverage: 140 to 220 GHz (G-band)

• Dynamic range: -30 to +20 dBm (option 100 for Average power measurement)

• Connector type: WR-5 (G-Band) flange connector

Highlights

• Compatible with existing Keysight power meters included N1913/14A EPM and N1913/14B EPM

• Diode sensing element enables a wide dynamic range for CW/Average power measurement

Designed with a WR-5 flange connector, the N8486DG/100 enables precise and direct waveguide measurements in the G-band frequency range. It offers a dynamic range of -30 to +20 dBm, features a diode sensing element, and provides complete frequency and power coverage for source power calibration measurements up to 220 GHz. As part of Keysight’s N8486DX Series, it expands the portfolio of waveguide power sensors in the D-band and G-band frequencies. This series facilitates precise high-frequency source power calibration with VNA and SG, supporting the rapidly evolving 6G industry, particularly in R&D design validation and manufacturing.

Calibration Factor Input

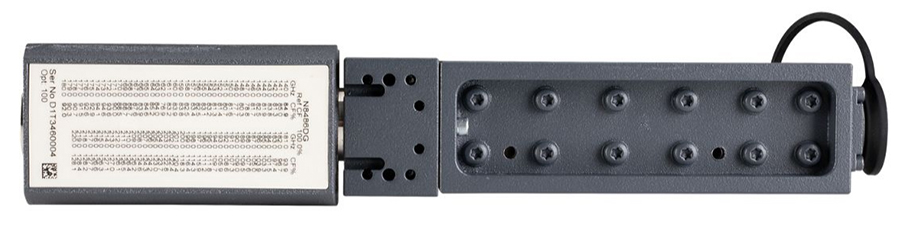

N8486DG-100 comes without built-in EEPROM. Users need to pre-enter calibration factors printed on the back of the sensor into the power meter.
