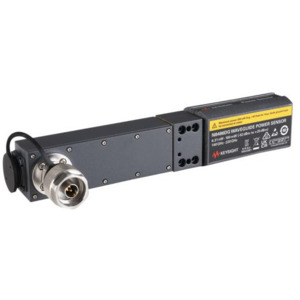

Keysight N8486DG/200 Diode Waveguide G-Band Power Sensor

Features and Specifications

• Less accuracy with a wider dynamic range

• Frequency coverage: 140 to 220 GHz (G-band)

• Dynamic range: -52 to -10 dBm (option 200 EPROM) and
  CW power from >-10 to +10 dBm (140 to 170 GHz) / >-10 to +5 dBm (>170 to 220 GHz)

• Connector type: WR-5 (G-Band) flange connector

Series Highlights

• Compatible with existing Keysight power meters included N1913/14A EPM and N1913/14B EPM

• Option 200 with built-in EEPROM stores the calibration factor with wider dynamic range power measurement

• Diode sensing element enables a wide dynamic range for CW/Average power measurement

Designed with a WR-5 flange connector, the N8486DG/200 enables precise and direct waveguide measurements in the G-band frequency range. It offers a dynamic range of -52 to -10 dBm with EPROM, features a diode sensing element, and provides complete frequency and power coverage for source power calibration measurements up to 220 GHz. As part of Keysight’s N8486DX Series, it expands the portfolio of waveguide power sensors in the D-band and G-band frequencies. This series facilitates precise high-frequency source power calibration with VNA and SG, supporting the rapidly evolving 6G industry, particularly in R&D design validation and manufacturing.

Calibration Factor Input

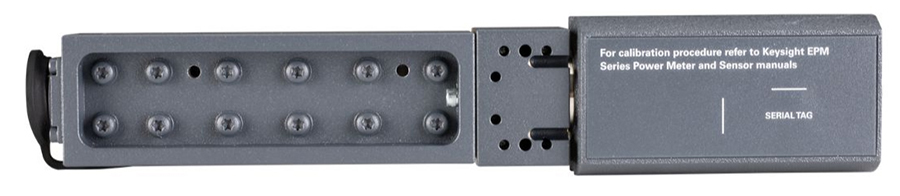

N8486-200 comes with built-in EEPROM to store calibration factors. Users simply need to input the frequency and the correct calibration factor will be applied.
