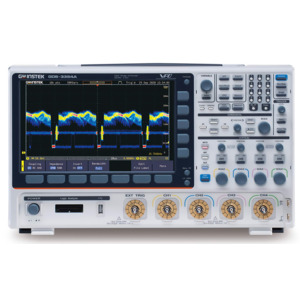

350MHz, 5G S/s, 4 channel with LAN/USB Oscilloscope

• 4 analog channels / 350 MHz bandwidth
• 16 digital channels (requires option GDS-DS3A-16LA)
• Dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram
• Dual cannel 25 MHz arbitrary waveform generator
• 13 power analysis measurements (requires option GDS-DS3A-PWR)
• Real time sampling rate: 5 GSa/s (1ch); 2.5 GSa/s (2 ch)
• 200 Mpts memory depth per channel
• 200,000 wfm/s waveform update rate
• 38 automatic measurements
• Standard interfaces: USB, LAN, RS-232; optional GPIB is factory installed

The Instek GDS-3000A is available in two bandwidths (350 and 650 MHz), with two or four analog channels and an option for 16 channel logic analysis. The GDS-3000A features a per-channel memory length of up to 200 Mpts, as well as sampling rates up to 5 GSa/s.

Each of these models also includes a dual channel, 25 MHz arbitrary waveform generator, and a dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram.

In The Box

• Oscilloscope
• User manual
• Power cord
• GTP-351R 10:1 passive probe (1 per channel)
• Note: logic probe sold separately
