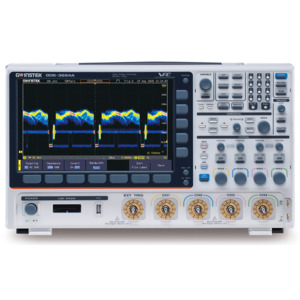

GW Instek GDS-3654A Mixed Signal Oscilloscope, 4 Channel, 650 MHz, 5 GS/s, 200 Mpts, GDS-3000A Series

Our Part #20005507

Mfr Part #GDS-3654A

GW Instek GDS-3654A
GW Instek
GW Instek

GW Instek GDS-3654A Mixed Signal Oscilloscope, 4 Channel, 650 MHz, 5 GS/s, 200 Mpts, GDS-3000A Series

Our Part #20005507

Condition:New

Mfr Part #GDS-3654A

$7,590.00EACH

650MHz, 5G S/s, 4 channel with LAN/USB Oscilloscope
  • 4 analog channels / 650 MHz bandwidth
  • 16 digital channels (requires option GDS-DS3A-16LA)
  • Dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram
  • Dual cannel 25 MHz arbitrary waveform generator
  • 13 power analysis measurements (requires option GDS-DS3A-PWR)
  • Real time sampling rate: 5 GSa/s (1ch); 2.5 GSa/s (2 ch)
  • 200 Mpts memory depth per channel
  • 200,000 wfm/s waveform update rate
  • 38 automatic measurements
  • Standard interfaces: USB, LAN, RS-232; optional GPIB is factory installed

The Instek GDS-3000A is available in two bandwidths (350 and 650 MHz), with two or four analog channels and an option for 16 channel logic analysis. The GDS-3000A features a per-channel memory length of up to 200 Mpts, as well as sampling rates up to 5 GSa/s.

Each of these models also includes a dual channel, 25 MHz arbitrary waveform generator, and a dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram.

GDS-3000A Series Oscilloscope
GDS-3352A GDS-3354A GDS-3652A GDS-3654A
Bandwidth 350 MHz 650 MHz
Channels Two Four Two Four
Record Length 200 Mpts/ch
Sampling Rate Up to 5 GS/s
Mixed Signal Analysis Via Option

In The Box

  • Oscilloscope
  • User manual
  • Power cord
  • GTP-501R 10:1 passive probe (1 per channel)
  • Note: logic probe sold separately

BrandGW Instek
Bandwidth650 MHz
Analog Channels4
Digital ChannelsUpgrade Required
Sampling Rate5 GS/s
Memory200 Mpts
TypeMSO
Vertical Resolution8 bit
Display Type10.2 TFT LCD WVGA Color Touch
SeriesGDS-3000A Series
InterfaceGPIB,USB,LAN,RS-232
