Pico Technology PicoScope 9404-05 CDR PicoScope With Clock Recovery, 9400 Series

Our Part #20005579

Mfr Part #PicoScope 9404-05 CDR

Pico Technology PicoScope 9404-05 CDR
Pico Technology
Pico Technology

Pico Technology PicoScope 9404-05 CDR PicoScope With Clock Recovery, 9400 Series

Our Part #20005579

Condition:New

Mfr Part #PicoScope 9404-05 CDR

WARNING
RoHS
$18,445.00EACH
Manufacturer Lead Time :60 Days

Condition:New

Calif. Prop 65
RoHS

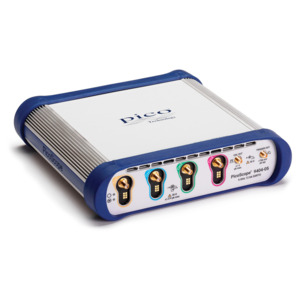

Pico Technology PQ209 (9404-05 CDR) PicoScope Oscilloscope With Clock Recovery

Features and Specifications

  • DC to 5 GHz Bandwidth
  • 4 Channel (All channels are identical and digitized simultaneously)
  • ADC resolution 12 bits
  • Maximum sampling rate: Real-time 500 MS/s per channel simultaneously

The Basic Real-Time Oscilloscope

The PicoScope 9404-05 CDR is a high-performance oscilloscope designed for engineers working with high-speed serial data and advanced signal analysis. This model is part of the 9400 Series and features Sampler-Extended Real-Time Oscilloscope (SXRTO) technology, combining real-time and equivalent-time sampling to deliver exceptional resolution and bandwidth.

With four input channels, the 9404-05 offers a 5 GHz analog bandwidth and supports real-time sampling at 500 MS/s per channel, as well as random equivalent-time sampling up to 1 TS/s, providing 1 ps resolution. It boasts a rise time of ≤70 ps, making it ideal for capturing fast transitions and fine signal details. The oscilloscope includes 12-bit ADCs, ensuring high vertical resolution and accurate signal representation.

The 9404-05 is also fitted with Clock and Data Recovery (CDR) capabilities, which has a clock recovery trigger data output of 6.5 Mb/s to 5 Gb/s and a frequency of half-full-rate clock output of 3.25 MHz to 2.5 GHz. CDR makes it especially valuable for applications in telecommunications, high-speed digital design, and compliance testing, where precise timing and synchronization are critical.

In addition, this SXRTO oscilloscope supports pulse, eye, and mask testing down to 45 ps and up to 11 Gb/s, enabling comprehensive signal integrity analysis. It includes a 250 kS trace length, shared across channels, and offers segmented memory with up to 1024 segments, allowing efficient capture of bursty or intermittent signals.

Its intuitive, touch-compatible Windows interface provides powerful tools for zooming, measurements, histograms, and data masks. With a compact USB-connected form factor, the PicoScope 9404-05 CDR delivers lab-grade performance in a portable package—ideal for both bench and field use.

What's in the Box

  • PicoScope 9404-05 SXRTO real-time oscilloscope
  • PicoSample 4 software supplied on USB stick
  • Free software updates from picotech.com
  • Quick start guide
  • 12 V power supply, IEC inlet
  • 3 x localized IEC mains leads
  • USB cable, 1.8 m
  • PicoWrench N / SMA / PC3.5 / K combination wrench
  • Storage / carry case
  • LAN cable, 1 m (9404 models only)

BrandPico Technology
Bandwidth5 GHz
Analog Channels4
Sampling Rate1 TS/S
Vertical Resolution12 bit
Series9400 Series
Alternate Product NumberPQ209
IncludesPicoScope 9400 Series sampler-extended real-time oscilloscope (SXRTO), PicoSample 4 software supplied on USB stick, Free software updates from www.picotech.com/downloads, Quick start guide, 12 V power supply, IEC inlet, 4 x localized IEC mains leads (UK,
