Keysight AC6903H Three-Phase AC Power Source

Features and Specifications

• Output
  • Power capacity: 3 kVA (1P or 3P)
  • Max AC voltage: 320 Vrms
  • Max DC voltage: 452 V
  • Frequency: Up to 5 kHz
  • Frequency input: 50/60Hz
  • Max rms current: 30 A / 15 A (1P); 10 A / 5 A (1P3W or 3P)
  • Choice of single, two, and three-wire connections
  • AC, DC, or AC plus DC mode

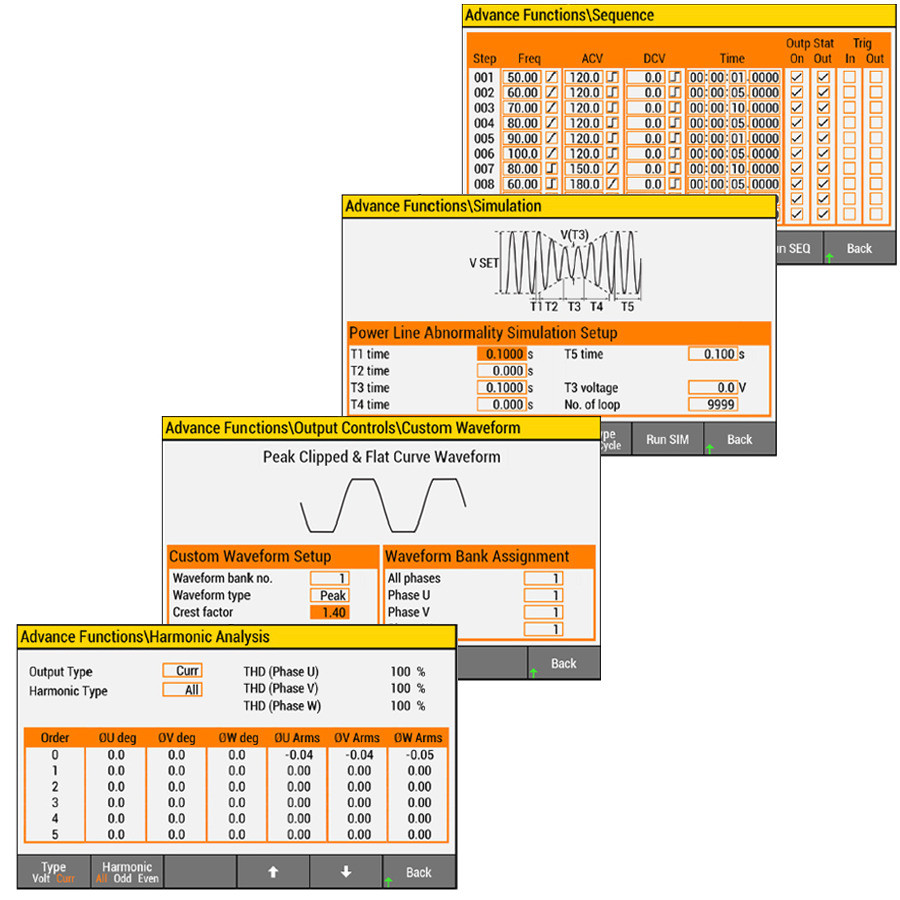

• Built-in Tests
  • Built-in waveform generation
  • Power line disturbance
  • Harmonic analysis
  • Output sequencing
• Protection
  • Output inhibit programming
  • Soft start / stop function
  • Analog and digital control
  • Current protection, over, and under-voltage
  • LAN (LXI core), USB, and optional GPIB

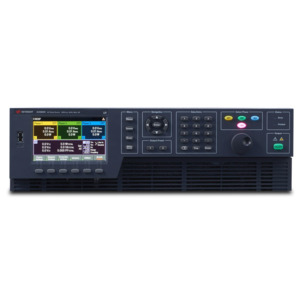

AC6903H Overview

The Keysight AC6903H is a three-phase AC power source from the AC6900 Series. It offers a total power range of 3 kVA, rms current 30 A / 15 A or 10 A / 5 A and supports RMS voltages up to 320 V. The frequency capability extends up to 5 kHz. The AC6903H can operate in AC, DC, or AC plus DC mode, making it versatile for various testing scenarios. It includes built-in tests for power line disturbance, output sequencing, and harmonic analysis. Additionally, it features waveform generation capabilities. The AC6903H is particularly useful for avionic equipment testing. It simplifies pre-compliance testing using the PathWave avionics test suite. The AC6900 Series combines the functionalities of a multimeter, harmonic analyzer, and power analyzer in a single instrument, providing accurate and precise testing capabilities.

The AC6900 Series of 3-Phase AC Power Sources

The escalating need for testing avionics equipment (avionic electronic systems), such as air traffic control systems, sensors, and unmanned aircraft systems, calls for an advanced AC and DC power solution. An ideal remedy for this objective is a compact, high-efficiency AC power source with DC functionality like the AC6900 Series. Toss in an avionics testing software suite such as BV0028B to expedite pre-compliance testing for both commercial and military standards and the result is an optimal instrument anyone would highly value.

Now given that your product will operate in real-world scenarios where AC power can be unpredictable, it's essential to design and validate its performance under a broad range of AC power inputs. This includes conditions like brownouts, dropouts, sags, and other irregularities that are not uncommon in many industries today. On top of that, it's necessary to conduct tests for line voltages and frequencies to ensure your product complies with the regulatory requirements of the country where you intend to market it.

Keysight's compact AC6900 Series 3-phase AC power sources are equipped with the features needed to easily achieve your testing objectives, whether in a research and development setting or on the manufacturing test floor. This series offers a comprehensive AC and DC power solution by integrating the functions of a multimeter, harmonic analyzer, and power analyzer into a single device. It allows for the easy generation of DC power, either standalone or as a DC offset to an AC waveform. Overall, it's the optimal instrument for testing avionics equipment operating at nominal frequencies of 400 Hz, 800 Hz, or up to 5,000 Hz, in compliance with RTCA DO-160 and MIL-STD-704 standards, which include both AC and DC immunity tests.

Leverage the measurement features of a Keysight AC6900 Series AC power source and streamline your testing configurations, minimize testing intricacy, and aid in rapidly producing precise data all by utilizing the following:

Precision Measurements

• AC, DC, AC plus DC voltage, and current
• Peak voltage and current
• Real, apparent, and reactive power - crest factor and power factor
• Harmonic analysis of voltage and current waveforms providing amplitude and phase up to the 50th harmonic
• Total harmonic distortion (THD)

Extensive Protection

• Overcurrent, overvoltage, overpower, and overtemperature protection
• Offers output disconnect relays and remote inhibit capability - transistor-transistor logic (TTL) signal protects DUT

Interface and Connectivity

• Five-inch LCD color display simultaneously presents the primary measurements for all phases
• User-friendly interface reduces your team's learning curve while taking measurements
• Multiple IO connectivity options - LXI-LAN, USB, and GPIB - offer flexible synchronization
• Pathwave BenchVue software for the PC enables you to operate the AC6900 Series remotely

Application Uses

• Test instrumentation and automated test equipment (ATE) test stations
• Simulate power interruption on cockpit electronics
• Perform pre-compliance test
• Measure current harmonic content and create custom AC power waveforms - combined AC and DC signals
• Ensure relays, transformers, power components, and fire alarms are operating properly
• Test power products such as AC / DC adapters, AC / DC power supplies, and uninterruptible power supplies
• Check AC motors and electronic controllers

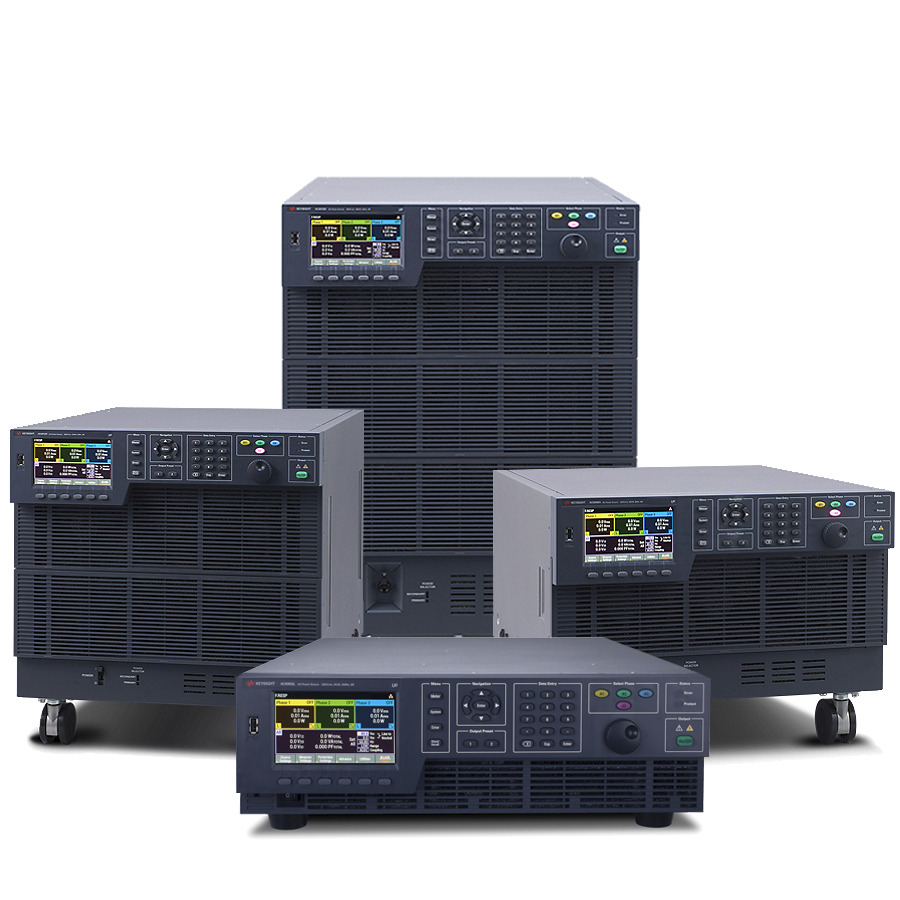

The AC6900 Series 3-Phase AC Power Sources Model Options

• AC6903L: 3 kVA, 550 Hz
• AC6903H: 3 kVA, 5000 Hz
• AC6906L: 6 kVA, 550 Hz
• AC6906H: 6 kVA, 5000 Hz
• AC6912L: 12 kVA, 550 Hz
• AC6912H: 12 kVA, 5000 Hz
• AC6918L: 18 kVA, 550 Hz
• AC6918H: 18 kVA, 5000 Hz

*NOTE: Due to the number of different power cords and terminations around the world, the AC6900 series power supplies do not come with power cords or terminations. Users will need to supply their own dependent on the local laws and codes of the country/region where the power supply will be used.

What's in the Box

• AC6903H Three-Phase AC Power Source
