Key facts:

• Dual Output
• 100 W maximum total output power for all R&S NGC models
• Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
• High output current up to 5A
• Linear post-regulation for low residual ripple and noise
• Electronic fuse (OCP), adjustable maximum voltage (OVP), adjustable maximum power (OPP) and overtemperature protection (OTP)
• Standard USB/LAN
• Rear panel connections, including sense lines, for all channels

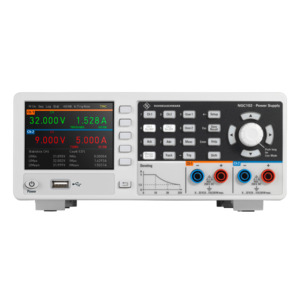

One, two or three channels – the R&S NGC100 power supplies’ specifications and wide range of functions make them ideal for use in development labs and industrial environments. Thanks to their high energy efficiency, the power supplies remain cool and quiet, even at maximum load. Practical interfaces and connectors allow users to work quickly and conveniently with the R&S NGC100 series – even in 19" racks.

The R&S NGC100 family consists of three models, all with a maximum total power of up to 100 W and a continuous voltage range from 0 V to 32 V. The single- channel R&S NGC101 delivers a maximum of 10 A, the two- channel R&S NGC102 a maximum of 5 A and the three-channel R&S NGC103 a maximum of 3 A per channel. The two-channel and three-channel models enable users to connect multiple outputs in parallel or in series to increase the voltage or current. The outputs are galvanically isolated, floating and protected against overloading and short circuits.
