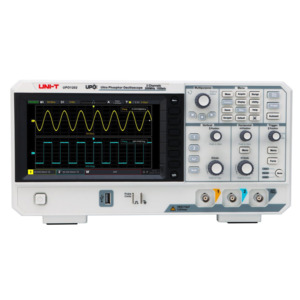

Uni-T UPO1202 200MHz 2Ch Digital Phosphor Oscilloscope

Features and Specifications

• Bandwidth: 200MHz
• Channels: 2Ch
• Scope Sample Rate: 1.0GSa/s
• Memory Depth: 56Mpts
• Refresh Rate: 500,000wfms/s
• Vertical Scale at 1MΩ: 500μV/div to 20V/div
• Number of Automatic Measurements: 36
• Included Bus Protocols: RS232, UART, I2C, SPI
• Vertical resolution: 8-bit
• Display: 7-inch WVGA（800×480）TFT LCD
• Interfaces: USB, LAN, EXT Trig, AUX Out
• 1Mpts FFT sampling points
• DVM supports AC/DC RMS (true virtual value) measurement
• Supports 6-digit hardware frequency counter measurement
• Supports waveform navigation, marker and segment
• Supports SCPI (Standard Command for Programmable Instrument)
• Supports web access and control

UPO1202 Overview

The Uni-T UPO1202 Digital Phosphor Oscilloscope, with its outstanding advanced features and budget-friendly pricing, provides the ultimate solution designed for professionals and enthusiasts alike, whether you're involved in electronic design, debugging, education, or industrial applications.

With 1Mpts FFT sampling points, this oscilloscope empowers you to perform in-depth frequency domain signal analysis, allowing you to customize spectrum analyzer functions such as frequency range, detection mode, and spectrum marking for comprehensive signal examination. Experience real-time decoding of serial bus signals with innovative hardware decoding technology. The UPO1202's deep storage of 56Mpts ensures millisecond-level decoding, eliminating the need for extended waiting times.

Enjoy uninterrupted waveform refresh rates and vivid digital fluorescence waveform displays, with the event list providing decoded data along with timestamp information for enhanced insights into your serial bus signals. The UPO1202 excels at displaying waveforms from different clock sources, even when their frequencies significantly differ, simplifying waveform parameter analysis and making it convenient to work with diverse signals.

With an impressive 56M sampling points per channel, the UPO1202 maintains a high sampling rate across a wide time base range, enabling detailed examination of waveforms while retaining an overarching view, significantly enhancing your ability to capture and analyze abnormal waveforms. The original Ultra Phosphor display technology with 256 gray levels allows for more waveform information and detailed observation.

The oscilloscope can be connected and remotely controlled via a web page, eliminating the need to install local programs and saving space and time. The Uni-T UPO1202 offers a variety of triggers including Edge, Slope, Runt, and Pulse in Auto, Normal, or Single-Shot modes, and includes RS232/UART, I2C, and SPI trigger/decoding, with CAN and LIN optional for this model.

Rich XY-mode cursor measurement can be controlled by SCPI standard protocols, Python, and Labview. It also features a built-in web server for remote, cross-platform operation, a 7-inch screen with 800x480 resolution, and interfaces including USB Device/Host, LAN, and AUX Out. The oscilloscope is certified with cETLus, CE, ROHS, and UKCA.

UPO1002 Series - Panel Features

Front Panel

Rear Panel

1. AUX Out (output port)
2. LAN
3. USB Device
4. Safety Lock
5. AC Power Input Socket

UPO1002 Series

The UPO1002 series digital phosphor oscilloscope features the advanced Ultra Phosphor 2.0 technology, a refreshed design, and capabilities such as deep storage, high waveform capture rate, real-time waveform recording and playback, and a 256-level grayscale display.

Series Models

• UPO1102 - 2Ch, 100 MHz
• UPO1202 - 2Ch, 200 MHz

What's in the Box

• UPO1202 200MHz 2Ch Oscilloscope
• Power cord
• USB2.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)
• Oscilloscope probe (UT-P04)*2
