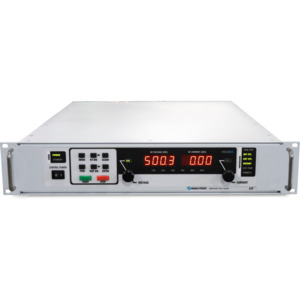

XR Series 2U Programmable DC Power Supply

Specifications

• 39 models
• 2U rack-mount
• 2 kW, 4 kW, 6 kW, 8 kW, 10 kW power levels
• 2000 Vdc to 10000 Vdc output voltage
• 310 Adc to 600 Adc output current
• SCPI Remote Programming API
• High Accuracy Measurements
• Programmable Protection Limits
• NI LabVIEW™ and IVI Driver

The 2U XR Series complements the 1U SL Series by providing high voltage (greater than 1500 Vdc) and high current (greater than 250 Adc) models in a 2U package at 2 kW, 4 kW, 6 kW, 8 kW, and 10 kW. The XR Series features the highest voltage range in Magna-Power's product offering, up to 10,000 Vdc and high current models up to 600 Adc, all utilizing the company's signature current-fed power processing to deliver robust power conversion. In addition, high accuracy programming and monitoring levels allow confidence in power supply measurements, eliminating the need for external power meters.

Key Features

• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• RS232 Interface
• Ethernet and GPIB Available
• 0-10V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Remote Interface Software
• NI LabVIEW™ and IVI Driver
• Interlock Shutdown Input
• Designed and Manufactured in the USA

Available Options

• High Slew Rate Output (+HS)
  The High Slew Rate Output (+HS) solves several limitations inherent in switching power supply design. Rapid voltage transitions require internal electronics to supply the energy to charge and discharge output capacitors. Peak currents internal to the power supply define slew rate; utilizing less capacitance enables voltage transitions in shorter time periods. Additionally, less capacitance reduces requirements for discharge demands during open circuit conditions.
• IEEE-488 GPIB Communications (+GPIB)
  Sometimes called the General Purpose Interface Bus (GPIB), is a general purpose digital interface system that can be used to transfer data between two or more devices. It is particularly well-suited for interconnecting computers and instruments.
• LXI TCP/IP Ethernet Communications (+LXI)
  LXI is an instrumentation platform based on industry standard Ethernet technology designed to provide modularity, flexibility, and performance to small- and medium-sized systems.
  All of the product’s standard SCPI commands are supported over the +LXI option, along with all provided software and drivers.
• Ruggedized (+RUG)
  The Ruggedized Option (+RUG) provides additional mechanical security for large power components and sub-assemblies within SL Series and XR Series products.
  All products with the Ruggedized Option maintain ambient operating temperatures from 0°C to 50°C and ambient storage temperatures from -25°C to +85°C.
