Keysight E4980BL/052/710/710 Precision LCR Meter

Features and Specifications

• 100 uV to 2 Vrms; 1 uA to 20 mA variable test signal
• DC bias 1.5 / 2 V
• Auto-level control
• DC resistance
• 201 points list measurement sweep
• 12 msec/pt. (fastest/point) measurement speed
• Versatile PC connectivity (LAN, USB, and GPIB)
• Direct-current resistance (DCR)
• Configuration 052 - 20 Hz to 500 kHz
• Configuration 710 - An option with no interface
  Up to 2 interface options (Handler or Scanner) can be installed in the rear panel. When no interface is installed, two of the option 710 are installed.

Best-in-Class Measurement Performance

The Keysight E4980BL precision LCR meter is a benchmark in the industry, offering a blend of accuracy, speed, and flexibility for diverse component measurements. Ideal for general R&D and manufacturing tests of components and materials, the E4980BL provides rapid measurement speeds and outstanding performance across both low and high impedance ranges.

Additional Highlights

• 0.05% basic accuracy provides the best-in class accuracy in the LCR and impedance measurements.
• Unrivaled measurement repeatability and stability provide you the quality measurements.
• Expands the coverage of measurements with additional options.
• Variety of measurement accessories (i.e. fixtures, extension cables, and standards (C, R).

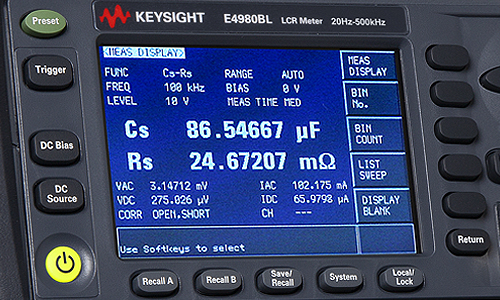

Display Features

• LCD Display, 320 × 240 (pixels), RGB color
• Measurement value
• Measurement conditions
• Limit value and judgment result of comparator
• List sweep table
• Self-test message

What's in the Box

• E4980BL/052/710/710 LCR Meter
• USB (Type A) to USB (Type Mini-B) cable
• Power Cable
• Certificate of Calibration
