SNA6000-TDR Enhanced Time-Domain Analysis (TDR) Software

Features and Specifications

• Option for the SNA6000A Series Vector Network Analyzers
• Shows the positions and properties of the impedance discontinuities on DUT
• Remove the influences of the impedance discontinuities
• Design a compensation network for high-speed digital signal transmission by emphasis/ de-emphasis or equalization

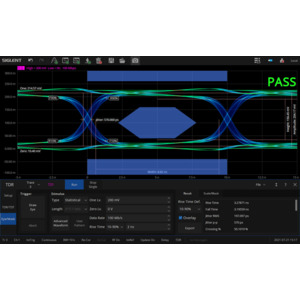

• Directly inject jitter into the input signal for eye diagram simulations

Measured frequency responses can be converted to the SNA6000-TDR time domain to examine the time-domain characteristics of the Device Under Test (DUT). The TDR option offers time domain reflection/transmission analysis and eye diagram simulation, helping users save time and money by reducing the need for additional test equipment.
