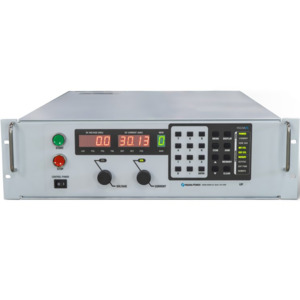

TS Series 3U Programmable DC Power Supply

Specifications

• 275 models
• 3U to 16U rack-mount
• 5 kW to 100 kW power levels
• 5 Vdc to 6000 Vdc output voltage
• 0.8 Adc to 8000 Adc output current
• SCPI Remote Programming API
• High Accuracy Measurements
• Programmable Protection Limits
• NI LabVIEW™ and IVI Driver

The TS Series offers many models spanning a wide voltage and current range, while still maintaining among the highest power density rack-mount packaging. The TS Series covers voltages from 5 Vdc up to 6000 Vdc (floating) and current levels from 1.2 Adc up to 8000 Adc.

Key Features

• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• RS232 Interface
• Ethernet and GPIB Available
• 0-10V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Remote Interface Software
• NI LabVIEW™ and IVI Driver
• Interlock Shutdown Input
• Designed and Manufactured in the USA

Available Options

• Blocking Diode (+BD)
  The integrated Blocking Diode (+BD) option provides an internally heat-sunk protection diode on the positive output terminal of a MagnaDC programmable DC power supply. This diode protects the product’s output from reverse voltage up to 1200 Vdc. All voltage sensing is performed after the protection diode—at the product’s output terminals—making the diode’s operation completely transparent to the performance of the power supply.
• High Isolation Output (+ISO)
  Certain applications require floating the output voltage to values beyond the power supply isolation rating. Magna-Power’s High Isolation Output Option (+ISO) enables a TS Series, MS Series or MT Series model with a peak output voltage rating of 250 Vdc through 1000 Vdc to be rated for a higher voltage output isolation. Improved isolation is achieved by a novel output stage with improved controller isolation.
• High Slew Rate Output (+HS)
  The High Slew Rate Output (+HS) solves several limitations inherent in switching power supply design. Rapid voltage transitions require internal electronics to supply the energy to charge and discharge output capacitors. Peak currents internal to the power supply define slew rate; utilizing less capacitance enables voltage transitions in shorter time periods. Additionally, less capacitance reduces requirements for discharge demands during open circuit conditions.
• IEEE-488 GPIB Communications (+GPIB)
  Sometimes called the General Purpose Interface Bus (GPIB), is a general purpose digital interface system that can be used to transfer data between two or more devices. It is particularly well-suited for interconnecting computers and instruments.
• LXI TCP/IP Ethernet Communications (+LXI)
  LXI is an instrumentation platform based on industry standard Ethernet technology designed to provide modularity, flexibility, and performance to small- and medium-sized systems.
  All of the product’s standard SCPI commands are supported over the +LXI option, along with all provided software and drivers.
• Water Cooling (+WC)
  The Water Cooling (+WC) option is available for Magna-Power power supplies for use in densely packaged system cabinets, where heat removal by the product’s standard air cooling presents a challenge.
