PCE Instruments
PCE Instruments

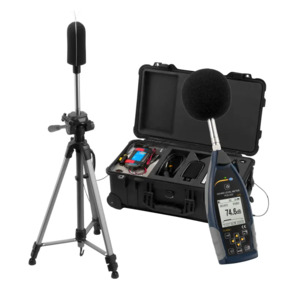

PCE Instruments PCE-432-EKIT Sound Level Meter Set, Datalogging, 22 -136 dB, 400 Series

Our Part #20016456

Mfr Part #PCE-432-EKIT

PCE Instruments PCE-432-EKIT
PCE Instruments
PCE Instruments

PCE Instruments PCE-432-EKIT Sound Level Meter Set, Datalogging, 22 -136 dB, 400 Series

Our Part #20016456

Condition:New

Mfr Part #PCE-432-EKIT

$6,837.00EACH

  • 1/1 octave band included
  • 1/3 octave band optional
  • Accuracy class 1
  • Integrated GPS receiver
  • A, B, C & Z frequency rating
  • Fast, Slow, Pulse and Peak time weighting
  • Statistics function
  • Display of the sound profile as a graph
  • 3 measuring profiles adjustable
  • Low inherent noise
  • ICCP microphone 40 mV /PA
  • Alarm level adjustable

The Class 1 sound level meter PCE-432-EKIT meets all requirements for noise measurement and frequency analysis. The sound level meter is equipped with a GPS receiver in addition to the sound measurement function. The GPS function allows the user to assign the measured values to an exact position.

This integrated precision pulse sound level meter follows all valid standards and guidelines (Class 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.) The sound level meter PCE-432 has a very large illuminated display. The sound level meter display adjusts the sound pressure level numerically and graphically in real time. The professional sound level meter has an integrated data logger. The measurement data is stored on a micro SD card. This card can be read directly in the PC.

Likewise, the sound level meter can be connected to the PC via USB and the memory can be read out. The post-processing software from the sound level meter allows convenient measurement data analysis. The typical applications for this instrument are the measurement of workplace noise, compliance, environmental noise detection, selection of hearing protector selection, selection of appropriate noise abatement measures and noise exposure estimation.

The pulse function of the PCE-432 allows you to record short-term sound events. Thanks to the integrated octave band function even the smallest differences in the frequency band can be detected. The frequency filter can be optionally upgraded. The measuring range of this professional sound level meter ranges from 22 ... 136 db (A) at a frequency of 3 Hz ... 20 kHz.

PCE-4xx-EKIT
An additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit makes it possible to measure the outdoor noise with a noise meter over a long period of time. The environmental noise monitoring system consists of a waterproof Peli carrying case with rollers. A charger and two additional lead gel batteries are installed in this case, which allows an operation of the sound monitor for up to 10 days. During the outdoor sound measurement, the case may remain closed. Due to the external connections for the microphone and the power supply all electronic components are protected from water.

The delivery scope of the outdoor sound monitor includes rain and wind protection as well as a wire mesh for the microphone. Also, a tripod is available with which the microphone can be placed outdoors. Also, the charger in the measuring kit PCE-4xx-EKIT is waterproof. So, the charger may also remain outdoors. The outdoor noise meter can be used, for example, for the sound measurement of road noise, aircraft and train noise, event noise, etc. The weather does not matter, hail, snow and rain are no problem for the kit for outdoor noise. If the PCE-432 noise meter is combined with this measuring kit, it is even possible that the exact location of the sound level metering around the outside area is assigned via the GPS receiver.

In The Box

  • 1 x Sound Level Meter PCE-432-EKIT incl. Outdoor Noise Level Meter Kit
  • 1 x 1/2" measurement microphone class 1
  • 1 x Wind noise suppression (foam ball)
  • 1 x USB interface cable
  • 1 x Software is a free download
  • 1 x Power adapter
  • 1 x Suitcase
  • 1 x User manual
  • 1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
  • 1 x Waterproof PELI transport case
  • 1 x Wind and rain protection for microphone of the PCE-4xx series
  • 1 x Charger for internal batteries
  • 2 x 12 V lead gel batteries
  • 1 x Tripod
  • 1 x 2 m / 6ft 6" microphone cable
  • 1 x Connection cable for power supply (optional Schuko or US connection)
Note: The outdoor sound level meter PCE-432-EKIT comes with octave band filter. Optionally upgrade with a 1/3 octave band filter


BrandPCE Instruments
Display TypeBacklit LCD
IO InterfaceUSB, RS232
Series400 Series
$6,837.00EACH
