PCE Instruments PCE-DFG 5 X Force Gauge, 0 - 5N, USB-C, PC Software, 32 GB, DFG Series

Our Part #20016538

Mfr Part #PCE-DFG 5 X

PCE Instruments PCE-DFG 5 X
PCE Instruments
PCE Instruments

PCE Instruments PCE-DFG 5 X Force Gauge, 0 - 5N, USB-C, PC Software, 32 GB, DFG Series

Our Part #20016538

Condition:New

Mfr Part #PCE-DFG 5 X

$1,043.00EACH

Condition:New

  • Measuring range: 0 ... 5 N
  • Measuring rate: 1 ... 7,200 Hz
  • Accuracy: ±0.05 % FS
  • Graphic display
  • USB-C interface
  • PC software
  • 32 GB memory for 30 mio. measuring points
  • Measuring cells easily interchangeable
  • Various alarm modes
  • Bar chart to display the measured value in the measuring range
  • Calibration reminder

The force gauge can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The force measuring device has an internal measuring cell and can measure forces up to 5 N. Various eyelets or hooks with an M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell with these threads.

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The force tester has a USB-C interface that can be used to read the measurement data into the PC software. The force gauge is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test benches are available for adapting the force transducer.

In The Box

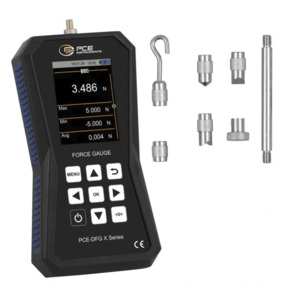

  • 1 x PCE-DFG 5 X force gauge
  • 1 x adapter set
  • 1 x case
  • 1 x USB-C cable
  • 1 x PC software
  • 1 x operating instructions

BrandPCE Instruments
Display TypeLCD
IO InterfaceUSB-C
Resolution0.001 N
