PCE Instruments PCE-G1 Panel Meter for Temp/Humidity, Wall Mount, 100mm LED Digit, IP54, G Series

Our Part #20016602

Mfr Part #PCE-G1

PCE Instruments PCE-G1
PCE Instruments
PCE Instruments

PCE Instruments PCE-G1 Panel Meter for Temp/Humidity, Wall Mount, 100mm LED Digit, IP54, G Series

Our Part #20016602

Condition:New

Mfr Part #PCE-G1

$1,452.00EACH

  • Ingress protection type: IP 54 rating
  • Large, easy-to-read 100 mm / 3.9 in tall LED digits
  • Temperature and relative humidity values are displayed every 2 seconds (in 2-second intervals)
  • Displays temperature in degrees Celsius (°C) only
  • Ready for wall mounting
  • Long life
  • Excellent readability
  • High accuracy

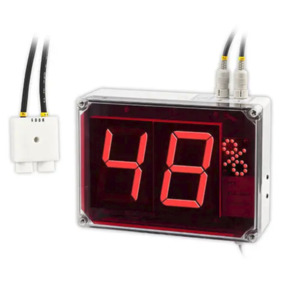

The panel meter is intended for stationary measurement of relative humidity and temperature and direct display on a large display. This panel meter consists of a large monochrome display and is protected according to IP 54.

The measured variables are displayed alternately: relative humidity (2 s) and temperature (2 s). The sensors of the panel meter are calibrated at the factory. However, an ISO calibration certificate can also be ordered as an option. Simple, accurate and robust.

In The Box

  • 1 x Panel Meter PCE-G1
  • 1 x Sensor for temperature and humidity with connection cable (in selected configuration)
  • 1 x Mains power cable
  • 1 x Instruction manual

BrandPCE Instruments
Display Type100mm high LED
SeriesG Series
Accuracy+/- 1 °C
IO InterfaceRS-232
Power Source110 - 240 V
Resolution0.1 °C
$1,452.00EACH
