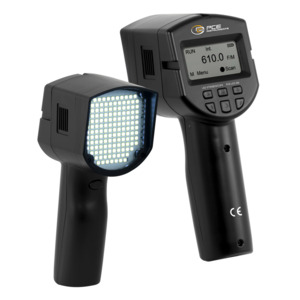

PCE Instruments PCE-LES 350 Portable LED-Stroboscope, 144 LEDs, 6270 Lux, LES Series

Our Part #20016639

Mfr Part #PCE-LES 350

PCE Instruments PCE-LES 350
PCE Instruments
PCE Instruments

PCE Instruments PCE-LES 350 Portable LED-Stroboscope, 144 LEDs, 6270 Lux, LES Series

Our Part #20016639

Condition:New

Mfr Part #PCE-LES 350

$1,260.00EACH

Condition:New

  • Frequency 50 ... 12000 FPM
  • Doubling/division of FPM at a keystroke
  • Light source 144 LEDs
  • Flash frequency units: FPM, Hz, m/min
  • Integrated Li-ion battery
  • Adjustable flash duration 1 ... 250 min
  • Quick one-hand operation
  • Illuminance: 6270 lux @ 12000 FPM / 20 cm

Our Stroboscope / Stroboscope Light offers the possibility of precisely recording and analysing fast movements. With a measurement range of 50 to 12000 FPM and a high accuracy of 0.01 %, movements at different velocities can be analysed with high precision.

Our Stroboscope / Stroboscope Light uses 144 high-performance LEDs to generate short, intense flashes of light that are emitted at regular intervals. These flashes are synchronised with the movement or machine being examined, giving the impression that the movement is frozen or extremely slow. This phenomenon is based on the proven principle of stroboscopy, in which the eye only perceives intermittent images of fast-moving objects through discrete flashes of light. The illuminance is 6270 lux at 12000 FPM and a distance of 20 cm. Measurements are simplified by the auto-scan function which gradually increases the flash frequency to quickly establish synchronisation.

For easy adjustment of the flash frequency, our Stroboscope / Stroboscope Light offers options in increments of 1 as well as the possibility to double or halve the flash frequency. Depending on your requirements, the flash frequency can be selected in FPM, Hz or m/min. To save energy and extend battery life, it is equipped with an automatic power-off function and an adjustable flash duration of 1 to 250 minutes. Our handy and Stroboscope / Stroboscope Light can be used in various fields such as industry, science and research as well as in the music industry. Equipped with a rechargeable 12-volt battery, it offers an operating time of approx. 4 hours.

In The Box

  • 1 x Stroboscope / Stroboscope Light PCE-LES 350
  • 1 x mains adaptor 12.6 V / 2 A
  • 1 x carrying case
  • 1 x user manual

BrandPCE Instruments
SeriesLES Series
Accuracy+/- 0.01%
Display TypeLCD
Power Source100 - 240 V AC
Resolution0.1 FPM
