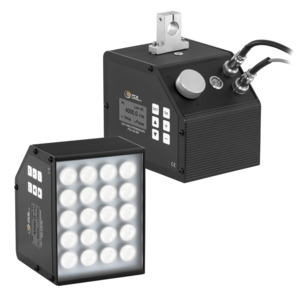

PCE Instruments PCE-LES 400 Fixed LED-Stroboscope, 20 LEDs, 1590 Lux, 2.4" LCD, LES Series

Our Part #20016640

Mfr Part #PCE-LES 400

PCE Instruments PCE-LES 400
PCE Instruments
PCE Instruments

PCE Instruments PCE-LES 400 Fixed LED-Stroboscope, 20 LEDs, 1590 Lux, 2.4" LCD, LES Series

Our Part #20016640

Condition:New

Mfr Part #PCE-LES 400

$1,320.00EACH

Condition:New

  • Frequency: 50 ... 36000 FPM
  • Doubling/division of FPM
  • Light source 20 LEDs
  • 2.4" LC display
  • Flash frequency units: FPM, Hz, m/min
  • Illuminance: 1590 Lux @ 36000 FPM / 10 cm
  • Phase shift: 0 ... 359 °
  • Flash duration 1 ... 3 %, max. 100µs
  • Trigger input

A Stroboscope / Stroboscope Light is a device for permanent installation that generates rapid flashes of light with energy-efficient and long-lasting LEDs. With a wide measurement range of 50 ... 36,000 FPM, a high resolution of 0.1 FPM and an accuracy of 0.01 %, it offers precise and reliable measurements.

Our Stroboscope / Stroboscope Light can be triggered both internally and externally and supports four external trigger modes. The sensor supply is 12 V and 50 mA with a minimum pulse width of 20 µs. The flash duration varies between 1 and 3 % of the period with a maximum duration of 100 µs. A phase shift of 0 ... 359° can be set and this enables flexible adaptation to different requirements. With an illuminance of 1590 lux at 36,000 FPM and a light source consisting of 20 LEDs, this Stroboscope / Stroboscope Light produces intense and clear flashes of light. The 2.4-inch LC display ensures user-friendly operation. In addition, the device can double or halve the frequency of the light flashes (FPM), making quick adjustments possible. The compact dimensions of 150 x 115 x 130 mm allow easy mounting on an aluminium slot profile. Power is supplied via 220 V AC at 50 Hz, which ensures stable and reliable operation.

Our Stroboscope / Stroboscope Lights are used in industry for machine monitoring and quality control, in scientific research for motion analysis and in medicine for special diagnostic procedures. Their reliability, energy efficiency, durability and low heat generation make them a versatile and efficient solution for various applications.

In The Box

  • 1 x Stroboscope / Stroboscope Light PCE-LES 400
  • 1 x aluminium slot profile
  • 1 x 4-pin coupling
  • 1 x connection cable
  • 1 x external trigger sensor
  • 1 x fixing screws
  • 1 x user manual

BrandPCE Instruments
SeriesLES Series
Accuracy+/- 0.01%
Display TypeLCD
Power Source220 V AC
Resolution0.1 FPM
