Fiber Media Converter (FMC)

• Connects to 1 Gb/s (1000BASE-SX, 1000BASE-LX) and 10 Gb/s (10GBASE-SR, 10GBASE-LR) fiber Ethernet ports through a media converter and SFP (1G/10G) using single-mode or multimode optic fiber cables

• Compatible with LinkIQ Cable+Network Tester and LinkIQ Duo Cable+Wi-Fi+Network Tester

• Fiber optic network testing features including: IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number)

• Battery bank for portable operation

Test Fiber Optic Network Ports With Any LinkIQ Tester

The LinkIQ Cable+Network Tester Advanced Kit and Fiber kit is the solution to verify cable and fiber performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate (10BASE-T to 10GBASE-T) maximum bandwidth. Connect to copper or fiber switch ports for: (IP address, name, port / VLAN number, and advertised data rates); Ethernet Alliance-certified Power over Ethernet testing (hardware/software negotiation and loaded voltage and power tests). Additional features include FiberLert™, Quick Clean, cable toning, port blink, optional remote office locators, and the ability to manage results via LinkWare PC.

Port Connections And Verifications

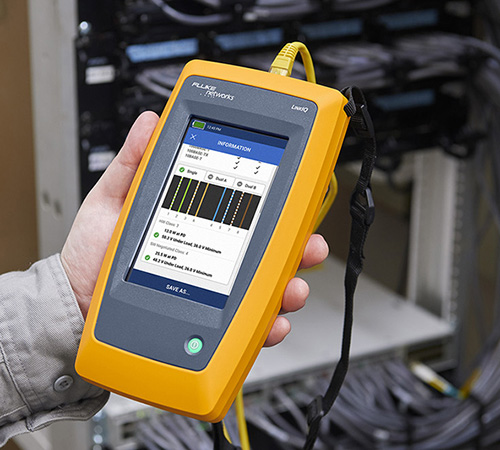

When testing a connection through the FMC, the “Network” test provides results that can tell you if you have an Ethernet connection to the device at the far end (typically a switch) and if you can send IP traffic to targets at the far end. The result you get looks something like this mobile's screen.

Compatible with LinkIQ and LinkIQ Duo Testers

SFPs (single-mode and multimode):

• 1000BASE-LX single-mode

• 1000BASE-SX multimode

• 10GBASE-LR single-mode

• 10GBASE-SR multimode

Fiber Media Converters (FMC):

• 1Gb/s media converter

• 10 Gb/s media converter

LinkIQ Cable+Network Tester

• Find maximum cabling speed (Up to 10 Gb/s)

• Install and troubleshoot PoE devices via Switch Negotiation and PoE Load Test

• Set performance from 10 Mb/s to 10 Gb/s for a simple pass/fail indication

• Identify connected switch information (Switch Name, Port Number, and VLAN)

• LinkIQ is capable of measuring lengths up to 1000 feet (305 m)

• Provides distance to faults such as opens, shorts, and unterminated cable

• Using the remote ID allows for a complete wire map of the cable pairs which helps identify miswired and split pairs

Overview

The LinkIQ is capable of measuring lengths up to 1000 feet (305 m) and provides distance to faults such as opens, shorts, and unterminated cable. Using the Industrial Ethernet Remote Adapter (MS-IE-ADAPTER SET) allows for a complete wire map of the cable pairs which helps identify miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables. The LinkIQ supports EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols and qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10 Mb/s up to 10 Gb/s). It qualifies the cabling bandwidth by taking multiple frequency-based measurements. Using IEEE-standards-based measurements ensures that tested links meet performance requirements as opposed to transmission testers which only prove that the specific test devices can communicate over the link.

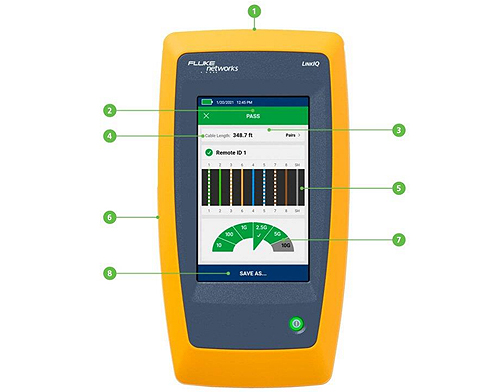

LinkIQ Interface Features

1. RJ45 Port for connection to cable or switch port

2. PASS/FAIL frequency-based measurement results

3. Touch screen color display

4. Length measurement shows distance to termination, open, or short

5. Wire map shows type and location of fault (miswires, split pairs, shorts, breaks)

6. USB-C port for data export, software updates and charging

7. Cable performance to 10 Gb/s shown in speedometer format

8. Save up to 1000 test results and export to LinkWare PC

What's in the Box

LIQ-KIT-FMC Includes:

• LinkIQ Cable+Network Tester

• FiberLert Live Fiber Detector

• 1.25 mm Quick Clean Cleaner

• Remote IDs #1-7

• Media converter

• Power Bank Battery

• USB-C to Media Converter Cable

• 2X SFP transceiver

• 2X fiber optic patch cord

• Ethernet cable

• Carry case

• Quick reference
