DeFelsko Adhesion Tester, Cross Hatch, PosiTest CH Series

Features

• Coating thickness: 0 - 50 μm / 0 - 2 mils
• Specified Blade (Spacing # of Cuts): 1 mm / 11 Teeth
• Includes all tools and accessories required for cross hatch testing in accordance with ASTM D3359
• Ergonomic tool handle with non-slip grip provides comfortable all-day use
• Pivoting cutting head ensures proper positioning and equal pressure across the cutting surface
• Easy to replace, high-grade hardened steel blade with 4 cutting edges for longer testing
• Wide range of 4-in-1 cutting blades available for different Standards, coating thicknesses, and substrates. Tool is compatible with all DeFelsko cutting blades.
• Illuminated Magnifier available with 3x or 10x magnification depending on Standard
• Brush included to remove any detached flakes from the coating
• Two year warranty

Determines a coating's ability to resist separation from a substrate when a lattice pattern is cut into the coating in accordance with ISO 2409 and ASTM D3359

• Includes all tools and accessories required for cross hatch testing
• Ergonomic tool handle with non-slip grip provides comfortable all-day use
• Pivoting cutting head ensures proper positioning and equal pressure across the cutting surface
• Easy to replace, high-grade hardened steel blade with 4 cutting edges for longer testing
• Choice of adhesive tape conforms to ISO 2409 or ASTM D3359

Conforms to ISO 2409/16276-2, ASTM D3359, AS 3894.9/1580.408.4, JIS K 5600-5-6

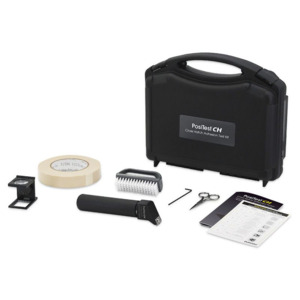

In The Box

• Cross hatch tool
• Blade
• Magnifier
• Adhesive tape
• Brush
• Scissors
• 3/32" hex key
• ISO/ASTM classification reference chart
• Instruction manual
• Hard shell case
• Two (2) year warranty
