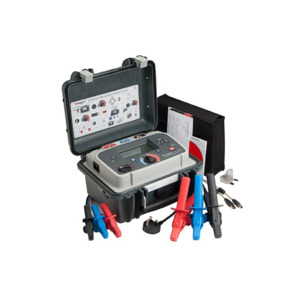

Megger S1-1068 Insulation Resistance Tester

Features and Specifications

• AC voltage (auto ranging): 90 - 264 V rms, 50/60 Hz, 100 A
• Resistance measurement: 35 teraohm - 10 kV
• Capacitance range: 10 nF to 25 uF
• Interference: 8 mA from 2560 V to 10 kV
• High current: 6 mA short circuit current
• High noise immunity: 8 mA of noise rejection
• Test Modes: IR, timed IR, DAR, PI, DD, SV and ramp diagnostic tests
• Dedicated voltmeter function (30 V to 660 V) AC or DC
• PI predictor (PIp) function
• Advanced memory, on screen recall and real time clock for date/ time stamped results
• Higher current version Of MIT1025, Hi-Noise Enviroments
• Download of memory via isolated USB cable Bluetooth
• Large LCD display with backlight
• Battery: 11.1 V, 5.2Ah meets IEC 62133: 2003 (S1-1568 has 2 batteries)
• Battery life: 4.5 hours (typical) continuous testing at 10 kV with a 100 Megohm load
• IP rating IP65 (lid closed), IP40 (lid open) prevents moisture and dust ingress

S1-1068 Quick Overview

The Megger S1-1068 Insulation Resistance Tester, featuring a 10 kV rating, is designed for high performance and durability. Rated at CAT IV 600 V up to 3000 meters, it boasts a dual case design with a robust outer shell to withstand knocks and drops, and a fire-retardant inner case for added safety.

Focusing on productivity, the tester offers rapid charge batteries and can operate from an AC source when the battery is flat. Its intuitive user interface ensures ease of use, eliminating downtime spent on relearning the device. The simplicity of operation is enhanced by two rotary switches and a large backlit display, allowing multiple results to be viewed simultaneously.

In insulation test mode, the device provides five preset voltage ranges per function, along with a user-settable lock voltage range. It includes preconfigured diagnostic tests such as Polarisation Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Stepped Voltage (SV), and Ramp test.

Advanced memory storage capabilities feature time/date stamping of results, data logging, and recall of results to the screen. Data transfer is secure and efficient through a fully isolated USB interface or an on-board Bluetooth interface.

S1-Series of Insulation Resistance Testers

These top end instruments are targeted at power utilities and service companies working in generation, transmission and distribution markets. Class leading charge current, noise rejection and software filters make the S1-Series Megger’s most advanced DC insulation resistance testers to date.

Series Models

• S1-568: 5 kV with a 100 megohm load
• S1-1068: 10 kV with a 100 megohm load
• S1-1568: 15 kV with a 100 megohm load

What's in the Box

• S1-1068 Tester
• 5 kV, 3 m x 3, medium insulated clips
• 10 kV, 3 m x 3, large insulated clips
• Quick Start Guide
• Power lead
• Screened USB cable with filters
• Remote control indicator beacon
