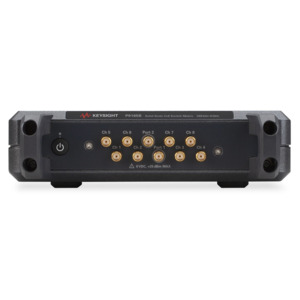

Keysight P9165B Solid State Switch Matrix, 2x8, 300 kHz to 9 GHz, USB, P9165X Series
Our Part #20017910
Mfr Part #P9165B
Keysight P9165B Solid State Switch Matrix, 2x8, 300 kHz to 9 GHz, USB, P9165X Series
Our Part #20017910
Condition:New
Mfr Part #P9165B
Condition:New
- Description
- Specifications
- Documents
Features and Specifications
300 KHz to 9 GHz, 2X8 full-cross bar USB switch matrix – solid state switch
Fast switching speed with an ultra-long cycle life, reduces total cost of test
Unmatched isolation minimizes cross talk in high density ATE systems
Built-in temperature stability
Route RF and microwave signals in automated test applications
Flexibility to build switch matrix as desired, hence a low-cost solution
Overview
P9165B 2X8 USB solid state switch matrix, 300 KHz to 9 GHz is a full cross-bar switch matrix that provides a switch based multiport VNA solution in the form of compact USB controlled involving a larger scale of multi-DUT or multiport measurements such as 5G massive MIMO antenna measurement and others.
Block Diagram
Keysight P9165x are 1 slot USB 2x8 solid state switch modules. It is designed to provide switch based multiport VNA solution and can also be used as a generic standalone switching solution. The switch is configured as 2x8 (2 in, 8 out) full-crossbar switch and consists of multiple SPDT and SP4T CMOS switches for fast switching. Switching can be done via the Soft Front Panel (provided) or IVI commands, executed from the host computer.
P9165X Series 2X8 USB Solid State Switch Matrix
Specifications describe the instrument’s warranted performance. See datasheet for full specs including insertion loss and return loss.
Specification | P9165A | P9165B | P9165C |
|---|---|---|---|
Operating Frequency | 300 kHz to 6.5 GHz | 300 kHz to 9 GHz | 300 kHz to 18 GHz |
Configuration | 2X8 full crossbar | 2X8 full crossbar | 2X8 full crossbar |
Isolation (dB) | 300 kHz to 1 GHz: 90 1 to 6.5 GHz: 88 | 300 kHz to 1 GHz: 90 1 to 9 GHz: 88 | 300 kHz to 2 GHz: 90 2 to 10 GHz: 88 10 to 15 GHz: 85 15 to 18 GHz: 80 |
Dimensions (HxWxD) | 48 mm x 176 mm x 332 mm (1.89 inches x 6.93 inches x 13.07 inches) | ||
Supplemental Characteristics
Supplemental characteristics are intended to provide useful information. They are typical but non-warranted performance parameters.
Maximum input power: 25 dBm
Typical switching speed (10% trigger to 90% output): 50 us
Typical input P1dB: 25 dBm
Typical input TOI: 54 dBm
RF connector: SMA (f)
What's in the Box
P9165B USB Solid State Switch Matrix
AC/DC Adapter
