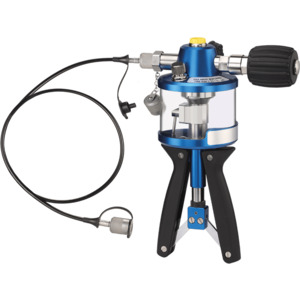

Pressure Pump Complete, Type P700.3, Solid

Key Features

• Pressure generation Pump for testing, adjustment, and calibration of all types of pressure gauges
• Testing, adjustment and calibration of all types of pressure gauges
• Precise adjustment thanks to ultra-fine thread pitch and large volume control valve
• High pressure generation with minimum effort
• Large calibration volume (300 ml)

Whether for on-site use in the workshop, in the measuring and test room or lab, SIKA temperature calibrators can be used everywhere.

A wide range of industries and various application areas are covered.

• assembly, commissioning
• manufacturing, production
• maintenance, service
• quality assurance, test equipment monitoring
• repair

Practical
The test pumps and pressure generators are developed so that all pressure systems to be tested can be adapted directly. The DUT is simply connected via the robust, industrial pressure hose with quick coupling and the adapters supplied. The reference sensor is mounted directly on the top of the pump using a positioning adapter.
The desired test pressure is first generated by means of the handles and then precisely adjusted with the fine adjustment valve. Thus, the same pressure level is present at both instruments. The pressure relief valve allows a stepless pressure reduction and ensures a precise and easy test run even when the pressure drops.
At the most basic level, the pressure is indicated by an analog pressure gauge. In addition, easy-to-read digital pressure gauges or hand-held instruments can be used. By comparing the display value of the reference sensor and the measured value of the DUT, it is possible to check the accuracy or adjust the pressure gauge to be tested.

Mobile and independent
SIKA test pumps and pressure generators are ideally suited for mobile use. The low weight and compact design allow easy transport directly to the measuring point. The instruments are immediately ready for use and work without additional supply voltage. It is not necessary to carry nitrogen cylinders along or to connect to a compressed air network. The wear-free pressure generation is simple and smooth, regardless of ambient temperature and orientation by manual operation.

Basic and Solid version

In The Box

• Hose
• Case with foam inlay
• 12 piece st.steel adapter set for common thread types
• MINIMESS adapter
• Fluid filling & removal bottle
• Set of common washers & o-rings
• Users manual
