Siglent SNA5000-GC Gain Compression Measurement Option

Features and Specifications

• For SNA5000 Vector Network Analyzer

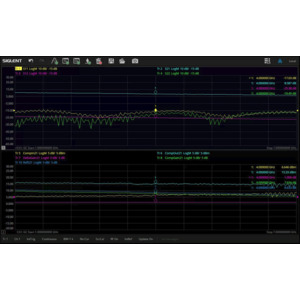

The function can complete the measurement of compression parameters and linear parameters within the operating frequency through one connection and one calibration. It supports three data acquisition mode and provides linear gain compression, max gain compression, back-off compression, X/Y compression, saturation compression methods to flexibly responding to complex test requirements and ensure comprehensive and accurate characterization of the nonlinear behavior of the device.
