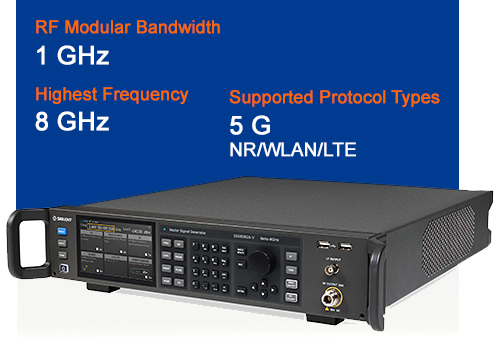

High-Performance Signal Generator for Advanced Modulation Needs

The SSG6082A-V Vector Signal Generator operates within a frequency range of 9 kHz to 8 GHz and supports various analog modulation types, including AM, FM, and PM, along with pulse modulation and pulse sequence creation. Featuring an integrated 500 MHz bandwidth IQ baseband source, it works alongside SigIQPro PC software to produce standard digitally modulated signals and communication protocol signals like 5G NR, WLAN, LTE, BLUETOOTH, and IoT. Its factory calibration ensures superior 1 GHz broadband performance and notable ACPR characteristics, making it ideal for a range of uses in research, development, production, and beyond.

Specifications

• Output frequency range: CW mode 9 kHz - 8 GHz

• Output Frequency Resolution: Up to 0.001 Hz

• Internal RF bandwidth (I+Q) 500 MHz

• IQ mode: 10 MHz - 8 GHz

• Level Setting Range: -140 dBm to 30 dBm

• Phase Noise: < -132 dBc/Hz at 1 GHz, offset 10 kHz (typical value)

• Amplitude Accuracy: ≤ 0.7 dB (typical value)

• Support common protocols such as LTE, 5G NR and WLAN, etc.

• Built-in web server for remote control via web browser

• 5-inch capacitive touch screen

Features and Benefits

• Modulation Support: Supports AM/FM/PM analog modulation, internal and external modulation options.

• Pulse Modulation: Supports optional pulse modulation function (SSG6080AV-PU), pulse train generator (SSG6080AV-PT), and user-defined pulse sequences.

• General Modulation: Capable of real-time output of QAM, FSK, ASK, PSK, multi-tone, and various other modulated signals. Supports playback of waveform files and sequences.

• Support waveform file playback: waveform sequence generation and playback.

• Communication Protocol Signals: Supports generation of common communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, IOT, etc., when used with SSG6082A-V 2 SigIQPro software (see data sheet).

• MIMO and Other Applications: Supports MIMO and various other application scenarios.

• Real-time IQ Baseband AWGN: Supports real-time IQ baseband AWGN, allowing accurate control of signal and noise power, simplifying additional measurements and calculations required for receiver measurements.

• Power Meter Control Kit: Facilitates power measurement, control of power output, and line loss correction using a power meter.

• Vector Mode S-Parameter Compensation: Supports S-parameter compensation in vector mode to optimize the broadband characteristics of the test system.

• Web Remote Control: Supports web remote control for convenient remote operation by users

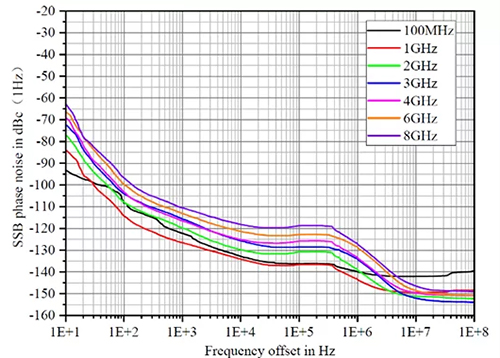

Ultralow Phase Noise

The SSG6082A-V series offers exceptionally low phase noise, achieving -132 dBc/Hz at a 10 kHz offset for a 1 GHz signal. Its enhanced spectral purity minimizes testing errors, ensuring greater precision and dependability in measurement outcomes. In wireless communication, signals with low phase noise help reduce bit error rates (BER), boosting the stability and reliability of communication systems.

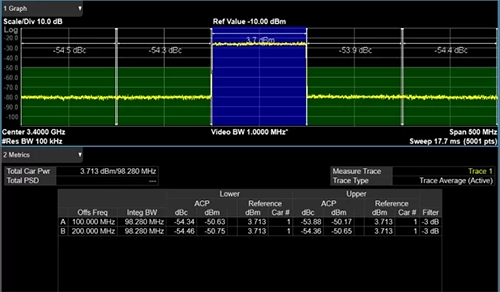

Superior Signal Quality

The SSG6082A-V boasts impressive 1GHz RF modulation bandwidth and ACPR performance, fulfilling the majority of communication testing needs. It consistently delivers outstanding EVM performance when generating standard communication protocol signals like WLAN, 5G NR, and LTE. Its superior ACPR reduces interference with adjacent channels during multi-channel tests, allowing for more precise emulation of real-world communication scenarios.

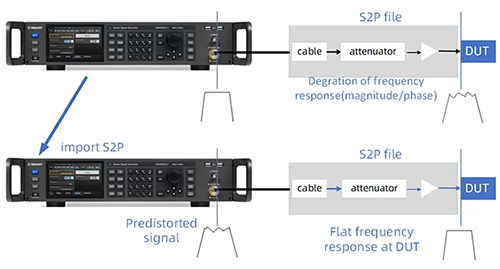

More Accurate Transmitter Simulation

The SSG6082A-V facilitates automatic adjustment of amplitude, frequency, and phase using the test system's S2P file. This process effectively reduces phase variations and noise while maintaining uniform signal amplitude across the entire frequency spectrum, ensuring stable signal levels at varying frequencies. Its improved system compatibility broadens its application scope, providing accurate and efficient performance for diverse testing needs.

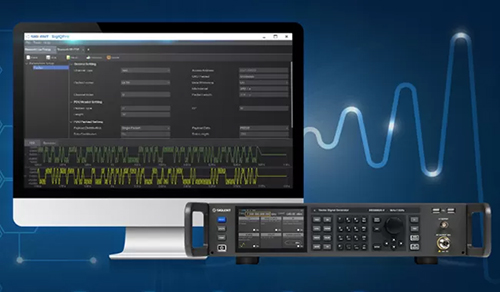

Simplify Signal Creation and Accelerate Test

• The SSG6082A-V and SigIQPro software combine simulation, design, and testing to effectively support users throughout the design, research, and production phases.

• SigIQPro is a versatile signal generation software for PCs that elevates signal creation, offering compatibility with Bluetooth, IoT, 5G NR, LTE, WLAN, and more.

• Designed for simplicity, SigIQPro enables effortless generation of protocol and modulated signals with an intuitive interface and comprehensive documentation, allowing for easy creation of standards-compliant waveforms across diverse applications.




SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.

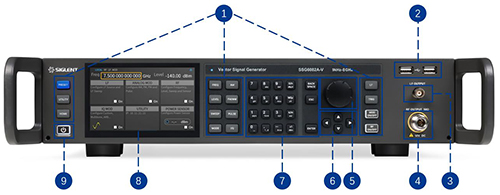

Front View

1. Function keys

2. USB Host

3. LF output

4. RF output

5. Knob

6. Direction key

7. Digital keyboard

8. Touch screen display area

9. Power button

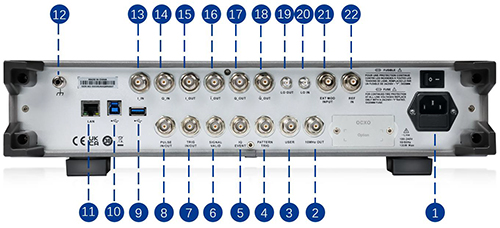

Rear View

1. AC power input terminal

2. 10MHz OUT

3. 10MHz OUT (reserved port)

4. Pattern TRIG

5. IQ_EVENT

6. Signal VALID

7. TRIG IN/OUT

8. Pulse IN/OUT

9. USB host

10. USB device

11. LAN interface

12. Ground (terminal)

13. I_IN (I baseband input)

14. Q_IN (Q baseband input)

15. I_OUT (quadrature-phase)

16. I_OUT

17. Q_OUT (in-phase)

18. Q_OUT

19. LO OUT (local oscillator output)

20. LO IN (local oscillator input)

21. EXT MOD INPUT

22. EXT MOD INPUT

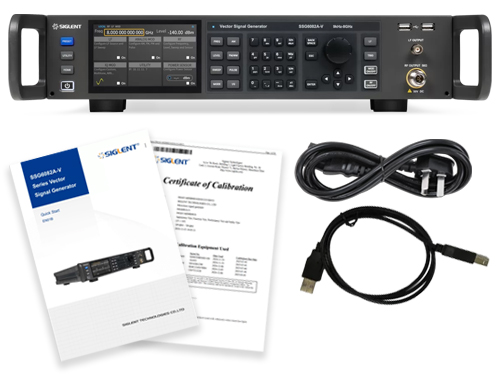

In the Box

• Quick start

• USB cable

• Calibration certificate

• Power cord
