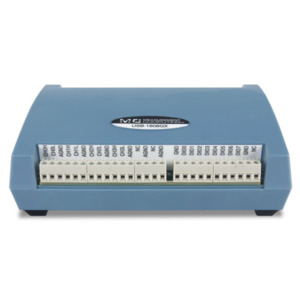

Digilent USB-1608GX DAQ

Features and Specifications

• 16 single-ended (SE) or eight differential (DIFF) analog input channels
• Eight individually configurable digital I/O channels
• Two counter channels (32-bit) that count TTL pulses
• One timer output channel (32-bit)
• Screw terminals for field wiring connections
• Supported Operating Systems include Windows 11/10/8/7/, Vista XP 32/64-bit, Linux and Android

USB-1608GX Overview

The Digilent USB-1608GX is a compact, high-speed data acquisition device with 16 analog input channels (single-ended) or 8 differential inputs, all with 16-bit resolution and software-selectable voltage ranges. It offers an acquisition rate up to 500 kS/s. The device also offers eight digital I/O lines, two high-speed counters, and a programmable timer output. Powered entirely through USB, it’s easy to set up and use without external power. It supports edge and level triggering, retriggerable acquisition, and comes with software tools like DAQami for quick data logging and visualization, plus drivers for LabVIEW, MATLAB, Python, and C#.

USB-1608G Series High-Speed Multifunction DAQ Devices

The USB-1608G Series consists of 6 models and offers affordable, high-performance USB-based analog and digital input/output solutions. Each unit supports up to eight differential or 16 single-ended analog input channels, includes eight digital I/O lines, features two counter inputs, and provides one timer output.

• USB-1608G: 16 SE/8 DIFF, 250 kS/s, 0 Analog Outputs, Screw Terminal
• USB-1608GX: 16 SE/8 DIFF, 500 kS/s, 0 Analog Outputs, Screw Terminal
• USB-1608GX-2AO: 16 SE/8 DIFF, 500 kS/s, 2 Analog Outputs, Screw Terminal
• USB-1608G-OEM: 16 SE/8 DIFF, 250 kS/s, 0 Analog Outputs, Header
• USB-1608GX-OEM: 16 SE/8 DIFF, 500 kS/s, 0 Analog Outputs, Header
• USB-1608GX-2AO-OEM: 16 SE/8 DIFF, 500 kS/s, 2 Analog Outputs, Header

Note: OEM versions have board-only form factors with header connectors for OEM and embedded applications (no case, CD, or USB cable included).

What's in the Box

• USB-1608GX DAQ
• USB cable
• MCC DAQ software
