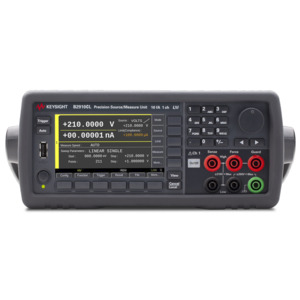

Keysight B29010CL Source Measure Unit

Features and Specifications

• Number of Channels: 1

• Max Voltage: 210 V

• Output Range Max Current (DC): 1.5 A

• Output Range Max Current (pulse): No

• Measurement Resolution: 6.5 digit

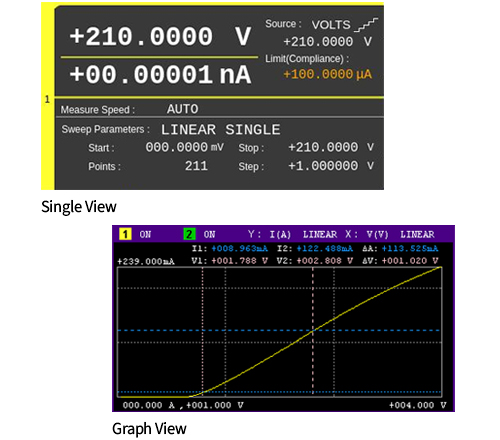

• View Modes: Single and Graph,
  Single provides basic and advanced settings from the front panel
  Graph provides results on XY graphs (I-V and I-t/V-t curves)

Highlights

• USB2.0, LAN, GPIB and digital I/O interfaces

• 4.3” TFT color display (480 x 272, with LED backlight)

• Dimensions Case: 88 mm (2U) x 213 mm (half width) x 450 mm

• CL version supports banana jack terminals

B29010CL Overview

The Keysight B2910CL is a precision single-channel Source/Measure Unit (SMU) designed for accurate and versatile electronic testing applications. It provides an output range of up to ±210 V and ±1.5 A DC, with measurement resolution down to 10 fA for current and 100 nV for voltage, enabling detailed characterization typically found in high-end semiconductor device analyzers. The B2910CL supports integrated four-quadrant voltage and current sourcing, simplifying IV measurements by eliminating the need for multiple instruments and complex setups.

This SMU includes an intuitive 4.3-inch color graphical user interface (GUI) with several viewing modes—such as single and graph view—allowing users to quickly configure tests, visualize data, and perform interactive device analysis directly from the front panel. Built-in sweep capabilities offer linear, logarithmic, and custom list sweeps with up to 100,000 steps, supporting comprehensive characterization across diverse electronic components. Furthermore, the unit efficiently captures transient phenomena with a fast sampling rate of up to 20,000 points per second, ideal for observing low-frequency transient behaviors.

The B2910CL features multiple connectivity options, including USB, LAN, and GPIB, facilitating easy integration into automated test environments. It supports advanced remote control through PathWave BenchVue software, PathWave IV Curve, and EasyEXPERT group+, enabling efficient test setups and data analysis without extensive programming. Its compact form factor and user-friendly design make the B2910CL a practical solution for precision testing requirements in research and development, education, production testing, and other applications demanding high accuracy and reliability.

Simplify Difficult IV Measurement Tasks

Performing IV measurements with conventional instruments such as voltage/current sources, Arbitrary Waveform Generators (AWGs), switches, and voltage/current meters is complicated and confusing. It requires deep technical knowledge of both the measurement technique and the instrumentation to perform an accurate measurement.

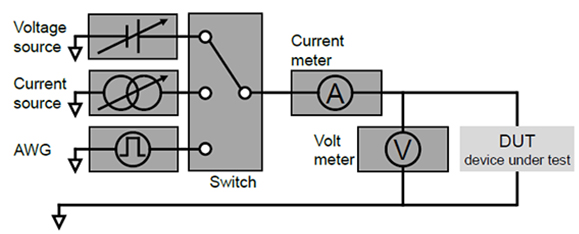

Rack and Stack Solution (right): Multiple instruments connected together with no easy means to coordinate them.

The B2900C/CL Series SMU integrates many different source and measurement capabilities into one compact form factor. It can operate as a seamless 4-quadrant precision voltage/current source, an electrical load, an accurate voltage/current meter, a pulse generator and an AWG. Its versatile all-in-one integrated source and measurement capabilities allow it to perform a wide variety of measurements from DC to low frequency AC without the need to change connections or use additional equipment.

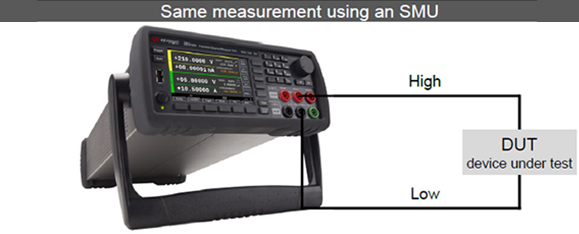

SMU Solution (right): Integrated 4-quadrant voltage and current sourcing and measurement (including AWG function).

B2900C/B2900CL Series SMU Models

Choose from six Keysight B2900C/CL Precision Source/Measure models that are compact and cost-effective bench-top Source/Measure Units (SMUs) with the capability to source and measure both voltage and current. In the chart below, the differentiation between the models is according to their available features: output range, number of digits displayed, measurement resolution, minimum timing interval, viewing modes, and SMU channels. These model choices make it easy for selecting the performance need for your testing requirements.

What's in the Box

• B2910CL Source Measure Unit

• Power cable

• USB cable

• Quick Reference (English)
