Pico Technology
Pico Technology

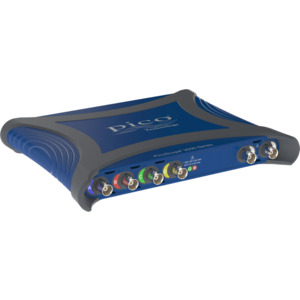

Pico Technology 3416E PC USB Oscilloscope, 200MHz, 4CH, 10-Bits, 5GS/s, W/ Probes, 3000E Series

Our Part #20018616

Mfr Part #3416E

Pico Technology 3416E
Pico Technology
Pico Technology

Pico Technology 3416E PC USB Oscilloscope, 200MHz, 4CH, 10-Bits, 5GS/s, W/ Probes, 3000E Series

Our Part #20018616

Condition:New

Mfr Part #3416E

WARNING
RoHS
$2,555.00EACH

Condition:New

Calif. Prop 65
RoHS

Pico Technology 3416E PC USB Oscilloscope

Features and Specifications

  • 4 analog channels
  • 200 MHz bandwidth
  • 10-bit resolution
  • 5 GS/s sampling rate
  • 2 GS ultra-deep capture memory
  • Function/arbitrary waveform generator included:
    100 μHz to 20 MHz (Function Gen)
    14-bit 200 MS/s (AWG)
  • Over 40 serial protocol decoders included as standard
    10BASE-T1S, 1-Wire, I2C, SPI, UART, CAN, and many more
  • Segmented memory, persistence and fast waveform updates
  • Advanced math, measurements, masks and digital triggering
    (includes: overshoot, edge count, phase, power factor, THD and SINAD)
  • Allows results of measurements to be recorded in a file for later analysis
  • PicoScope 7 for Windows, macOS & Linux with free updates
  • Support for LabView, MATLAB and writing your own code (PicoSDK)
  • SuperSpeed USB 3.0 interface and hardware acceleration
  • 5-year warranty and free technical support

PicoScope 3000E Series—More memory. More speed. More insight.

Experience the power of precision with the PicoScope 3000E Series oscilloscopes—featuring industry-leading deep memory with up to 2 billion samples. That’s several times more than typical scopes, giving you the ability to capture long, high-resolution waveforms without missing a beat. Whether you're analyzing high-speed serial data or complex power-up sequences, PicoScope delivers the clarity and detail you need. Just look at its 500-million-sample capture, zoomed in 10,000x to reveal every pulse with stunning accuracy.

Still, the 3000E Series continues to offer more. With up to 40,000 memory segments, you can capture thousands of individual events with just 700 ns of dead time between them—equivalent to 2 million waveforms per second. Perfect for applications like radar and laser systems, where signals are brief and spaced apart.

And when it’s time to analyze, PicoScope’s powerful software tools make it easy to navigate, manage, and explore your data—whether it’s one long waveform or thousands of short bursts.

Description

Bandwidth

Channels

Resolution

Memory

PicoScope 3415E MSO kit

100 MHz

4 analog + 16 MSO

8- to 10-bit

2 GS (8-bit mode)

1 GS (10-bit mode)

PicoScope 3416E MSO kit

200 MHz

PicoScope 3417E MSO kit

350 MHz

PicoScope 3418E MSO kit

500 MHz

PicoScope 3415E kit

100 MHz

4 analog

PicoScope 3416E kit

200 MHz

PicoScope 3417E kit

350 MHz

PicoScope 3418E kit

500 MHz


Total Cost of Ownership: Benefits and Portability

  • Everything is included: Serial protocol decoders, math channels and mask limit testing. No expensive optional upgrades or annual license fees.
  • Free updates: New features and capabilities are provided throughout the lifetime of the product as Pico develops and releases them.
  • Highly portable: Very suited to home-working where desk space might be limited.
  • Low power consumption: Less than 15 watts.

What's in the Box

  • 3416E PC USB Oscilloscope
  • Four probes (TA386)
  • USB power supply (PS017)
  • USB cables (TA532 and TA534)
  • One probe adapter (TA537)

BrandPico Technology
Bandwidth200 MHz
Analog Channels4
Sampling Rate5 GS/s
Digital ChannelsNone
TypeMSO PC
Vertical Resolution10 bit
Series3000E Series
Alternate Product NumberPQ359
IncludesContains four probes (TA386), USB power supply (PS017), USB cables (TA532 and TA534), and one probe adapter (TA537).
$2,555.00EACH
