Prestige/Harmony/Universal (PHU) Series Multi-Range High Power DC Source

Features

• Voltage output: 1500 V

• Power output: 15 kW

• Current output: 30 A

• C.C/ C.V priority mode

• Adjustable voltage/current rise and fall time

• AWS (Advanced Web Control)

• APC (Adaptive Parallel Connection)

• Parallel connection (maximum 10 units)

• High efficiency and high-power density

• Bleeder Control function

• Internal Resistance function

• Panel lock function

• Three sets of Preset Function

• Protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail

• Standard: USB, LAN, Isolated Analog control

• Option: RS-232&485 or GPIB or CAN Bus or Device Net or Any Bus

• 3U height and 19” Rack Mount Size

The PHU Series is a single-channel programmable DC power supply with a multi-range output feature which offers a wide range of voltage and current combinations for greater flexibility. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 15 kW of high output and keep the compact size at just 3U height.

PHU's wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc. The launch of PHU multi-range high power DC source enhances the completeness of the DC power supply product line of GW Instek, and provides customers with more comprehensive and integrated solutions.

The AWS (Advanced Web Server) function allows the user to operate devices directly through a web browser, without needing to install any complicated software or drivers. This functionality allows users to complete tasks more efficiently, saving time and increasing productivity.

The unique APC (Adaptive Parallel Connection) feature offers adaptability in parallel connection, allowing users to make the best choice according to their needs. For instance, users can opt for a 15 kW model and a 10 kW model to combine both to reach a 25 kW capacity within their budget constraints. Up to 10 PHU units can be connected to reach 150 kW without the need for additional power distribution for control.

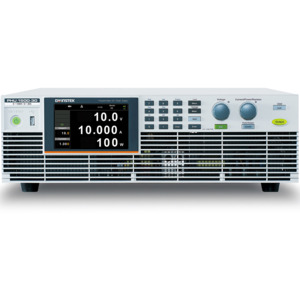

PHU Series Dc Source Front View

1. Power Switch

2. USB A Port

3. Display Area

4. Number Button

5. Function Button

6. Voltage Adjust Knob

7. Current/Power/Resistance Adjust Knob

8. Panel Lock

9. Current/Power/Resistance Switch

10. Output Switch

PHU Series Dc Source Back View

1. Analog Control

2. Anybus Connection

3. Digital I/O

4. Interconnect for Parallel Connection

5. LAN Port

6. USB B Port

7. DC Output Terminal

8. Remote Sense

9. Parallel Control

10. AC Input

For industry interface, PHU provides a variety of embedded industrial interface options to meet user needs, eliminating the need for users to prepare additional interfaces. The available ports including EtherCAT, CANopen, Modbus, Profinet and DeviceNet, etc. Except the standard built-in programmable sequence function, PHU also offers a variety of optional functions including Datalogger, MPPT (Maximum Power Point Tracking), Solar Array Simulator, AH/WH Meter and Battery Simulation to meet customer’s requirements.

There are a total of 18 models, consisting of 3 power capacities (5 kW/10 kW/15 kW) and 6 voltages (80 V/200 V/500 V/750 V/1000 V/1500 V) to meet all customer needs.

In The Box

• AC Input Terminal Cover x1

• DC Output Terminal Cover x1

• Handle x2

• Sensing Connector x1

• Sensing Connector Cover x1

• Digital I/O Control Connector x1

• Parallel Control Dummy Connector x1

• DC Output Terminal Screws x2

• Safety Guide
