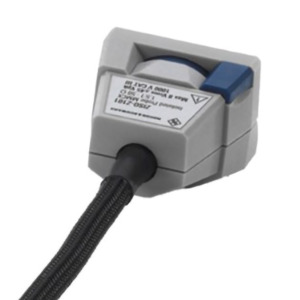

Rohde & Schwarz ZISO Series - ZISO-Z203 WSQPIN Tip

ZISO-Z203: Wide Square Pin (WSQPIN), 100x, ±2500 V (RMS), 5.08 mm pitch

When voltage increases, the greater creepage distance requires larger dimensions between exposed test leads. The wide square pin tips are suitable here and support larger input voltage ranges and offsets. The larger input loop would degrade CMRR performance at higher frequencies.

CAT III 1000 V safety rating

The probe head is designed with highest isolation in mind to minimize exposed metal during operation. The probe tips are designed with isolation caps that indicate the safe handling zone. This allows R&S ZISO-Z301 and R&S®ZISO-Z302 isolated passive probes to be used for quick access to measurement locations when debugging.

Safe attach on probe tips

Another innovation on the R&S ZISO is the safe attach feature on the probe tips. The quick lever allows the tips to be secured quickly and safely to the probe head without the need of additional tools such as wrenches or having to manually screw in the tips. Over-tightening of the SMA connector could eventually damage the contact and degrade the signal and isolation performance. Limiting direct contact with the metal conductor helps prevent electrostatic discharge (ESD) on the sensitive probe tips and heads.
