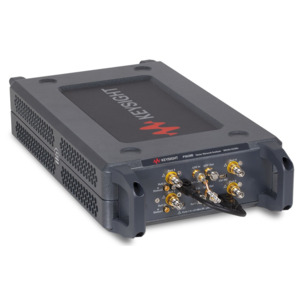

Keysight P5028B/402 Vector Network Analyzer

Experience the full power of network analysis in a compact form with the Keysight P5028B/402, part of the Streamline Series VNAs. Designed for high-speed measurements via Thunderbolt connectivity to your host PC, this faceless, four-port VNA delivers fast, reliable, and repeatable results—giving you confidence in every test.

Despite its small footprint, the P5028B offers performance up to 44 GHz, dramatically reducing the size of your test setup without compromising capability. Its lightweight design means you can carry this high-performance instrument with one hand, making it ideal for space-constrained environments or portable applications.

Unlock advanced RF characterization with a rich suite of software applications that transform the P5028B into a complete measurement solution. Whether you're testing passive components, amplifiers, or frequency converters, the P5028B delivers precision and flexibility in a streamlined package.

Features and Specifications

• 4-port with second source (option 402), 9 kHz to 44 GHz
• Improve throughput with fast Thunderbolt 3 interface (USB Type-C connectors)
• Choose from a wide range of measurement applications to gain deeper insight into your component tests
• Share the portable VNA with other teams and locations
• Extend the number of test ports by cascading two VNAs
• Measure with the same GUI, SCPI commands, and measurement science as Keysight’s trusted high-performance VNAs
• Calibrate quickly with Keysight Electronic Calibration (ECal) modules
• Upgrade your hardware with high performance-enabling software
• Keep your instrument up to date with VNA activation software
• No data storage memory on VNA, well-suited for classified environment

P50xxB With A Second Source (Option 402)

For intermodulation distortion (IMD) measurements (S97087B software app), a 4-port P502xB equipped with internal second source option 402 is recommended, allowing each built-in source to generate a distinct tone. The most common setup with the P50xxB involves using two reference receivers for power leveling: the first tone (f1) is captured by one receiver (e.g., a1 on port 1), while the second tone (f2) is measured by another (e.g., a3 on port 3). Alternatively, two Streamline Series VNAs can be cascaded, each producing one of the tones. This configuration requires the S97551B software for multi-instrument measurements. In both setups, an external combiner is necessary, and any of the remaining VNA ports may serve as the receive port.

P50xxB Streamline Series

The P50xxB VNA series delivers high-performance capabilities and features key metrics including wide dynamic range, fast measurement speeds, low trace noise, and excellent temperature stability. With software applications like enhanced time domain analysis with TDR and automatic fixture removal, you can easily characterize passive components with the same performance of a benchtop setup.

Available configurations include 2-, 4-port or 6-port models with varying frequency ranges.

• P500xB: 2-port (option 200), up to 53 GHz
• P502xB: 4-port (option 400 / option 402), up to 53 GHz / 6-port (option 600), up to 20 GHz

Applications/Features of the P50xxB Series

• Sweep type(s) Linear, Log, Segment, CW, Power, DC source
• Supports Direct Receiver Access (DRA) configurations
• S-parameter measurements of high-power devices
• 4-port test set option
• Full N-port calibration option for greater than 4 ports
• Built-in 2nd source option (Multi-instrument configurations or option 402 (P502xA/B series only) are required.)
• Frequency offset mode option (S97082B)
• Internal pulse generators and modulators option (S970250B/S970251B)
• Noise figure measurement* option (S97029B)
  *not supported below 50 MHz or above 45 GHz
• Enhanced time domain analysis with TDR option (S97011B)
• Frequency extension
• Multiport measurements for > 4 ports
• Multisite measurements for > 4 ports
• Power meter cal
• Spectrum analysis (S97090xB) / NPR
• Active hot parameters (S97111B)
• Time domain analysis (S97010B)
• Gain compression measurements (S97086B)
