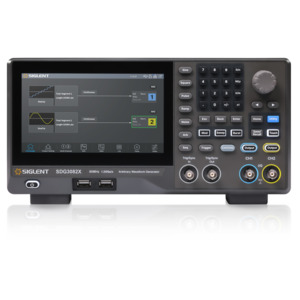

Siglent SDG3082X Function/Arbitrary Waveform Generator

Siglent’s SDG3082X arbitrary waveform generator provides 2 channels or waveform generation at up to 80 MHz with a large format display for intuitive definition of complex signals. The SDG3082X provides up to 20 Mpoints of memory per channel (40 Mpoints per channel with option) for custom arb development as well as an IQ option for generating IF and on carrier signals at symbol rates up to 50 MSymbols/second. The SDG3082X also provides square waves up to 60 MHz, pulse rise/fall times as low as 3 nanoseconds, and PRBS signals up to 120 Mbps.

These capabilities make the SDG3082X a great choice for education and benchtop applications where capability and usability are paramount.

Features and Specifications

• Dual channels, maximum output frequency 80 MHz, maximum output amplitude 20 Vpp

• 1.2 GSa/s sampling rate, 16-bit vertical resolution

• Using TrueArb technology, arbitrary waveforms can be output point by point. Under the premise of not losing waveform details, low-jitter waveforms can be output at a sampling rate of 10 mSa/s ~ 600 MSa/s

• Supports sequence wave playback function, with a maximum waveform memory of 40 Mpts per channel

• Using EasyPulse technology, it can output low-jitter square waves/pulses, and the pulse wave can achieve fine adjustment of pulse width, rising/falling edges, with extremely high adjustment resolution and adjustment range

• Supports dual pulse output function, which can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics

• Supports PRBS up to 120 Mbps

• Optional rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM

• Sweep and Burst functions

• Harmonic function

• Waveform Combining function

• High precision Frequency Counter

• 196 built-in arbitrary waveforms

• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11);
  optional GPIB

• Built-in WebServer supports instrument control via web browser

• 7-inch display touch screen

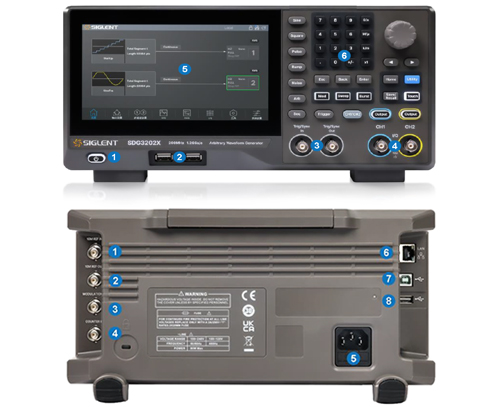

Front Panel Tour

1. Power Switch

2. USB Host

3. Trig/Sync Input and Output

4. CH1/2 Output

5. Display area

6. Front panel keypad

Rear Panel Tour

1. 10M REF IN

2. 10M REF OUT

3. MODULATION

4. COUNTER

5. AC power input

6. LAN port

7. USB Device port

8. USB Host port

SDG3000X Series

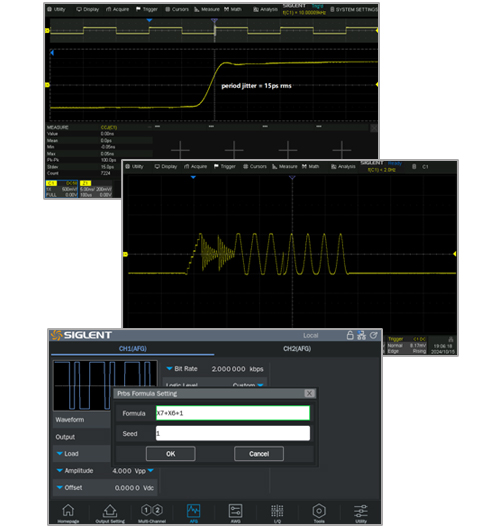

The SDG3000X dual-channel function/arbitrary waveform generator series has a maximum bandwidth of 200MHz with a large format display for intuitive definition of complex signals. It adopts the innovative TrueArb and EasyPulse technologies and can provide users with high-fidelity, low-jitter signals. The series also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.

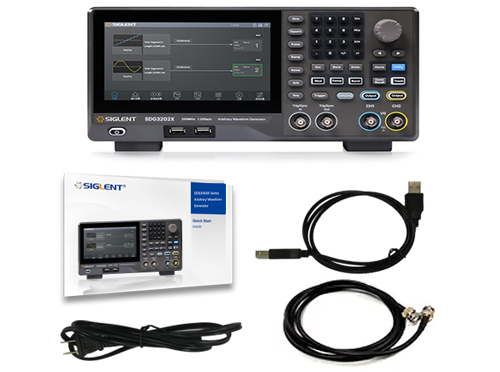

What's in the Box

• SDG3082X Function/Arbitrary Waveform Generator

• Quick Start

• Power Cord

• USB Cable

• BNC Cable

• Calibration Certificate
