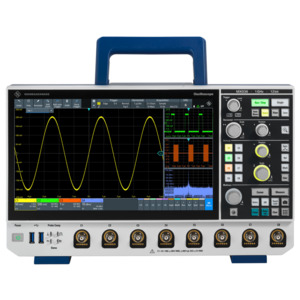

Rohde & Schwarz MXO 3 Series – MXO38-1PK Oscilloscope

The MXO 3 series oscilloscopes use cutting-edge technology for speed and precision. The enormous capacity of the oscilloscope comes in a small package. Freedom and versatility are available without compromising results. Enjoy unmatched performance along with quick and easy understanding of your DUT. Unmatched performance in both time and frequency domain debugging and testing.

Key Facts (MXO38-1PK):

• Unmatched performance with 100 MHz bandwidth

• MXO3-PK1 App Bundle

• 8 Channels

• Up to 5 Gsample/s sample rate

• 125 Mpoints per channel standard memory

• 12-bit ADC at all sample rates

• 18-bit architecture with HD mode

• Precise digital trigger

MXO3-PK1 Application bundle includes:

• MXO3-B6 – Arbitrary waveform generator, 50 MHz, 1 analog channel.

• MXO3-B105 – Memory upgrade to 500 Mpoints.

• MXO3-K31 – Power analysis.

• MXO3-K36 – Frequency response analysis.

• MXO3-K510 – Low speed serial buses (I2C / QuadSPI / SPI / UART / RS-232 / RS-422 / RS-485 / NRZ clocked / NRZ unclocked / Manchester).

• MXO3-K520 – Automotive protocols (CAN/CAN FD/CAN XL/LIN/SENT).

• MXO3-K530 – Aerospace protocols (ARINC 429/MIL-STD-1553/SpaceWire).

• MXO3-K550 – MIPI low speed protocols (SPMI/RFFE/I³C).

• MXO3-K560 – Automotive Ethernet protocols (10BASE-T1S).

Fast: See more signal details and subtle changes instantly.

All MXO oscilloscopes incorporate cutting-edge ASIC technology. Get the world’s fastest update rate of up to 4.5 million acquisitions/s enabled by the Rohde & Schwarz MXO-EP ASIC that processes 400 Gbit/s. This chip also enables hardware-accelerated functionality including math, spectrum, zone triggering and mask testing.

Precise: Don’t let anything get past you.

With low-noise frontend Rohde & Schwarz ASIC technology, 12-bit vertical resolution in Rohde & Schwarz proprietary ADC technology with up to 18-bit resolution and a digital trigger that is so sensitive it can trigger on smallest signal details; you will be equipped with the most precise oscilloscope in its class.

With 125 Mpoints standard memory and up to 500 Mpoints option, capture hundreds of milliseconds of time while retaining a fast sample rate and full bandwidth.

Compact: Get big capabilities in a surprisingly small package.

Engineered with innovative technology that allows for both 4- and 8-channel models in a surprising small package, MXO 3 oscilloscopes still retain a large 11.6" Full HD display. With its small footprint and light weight, easily place the oscilloscope on a crowded bench or quickly move to a new different measurement location. For rack mounting, it is just 5U high.

Logic analysis (with option MXO3-B1)

Every MXO 3 series oscilloscope comes equipped with MSO logic analysis. Just add MSO probes to get 16 digital channels. Use the MSO probes across different MXO series oscilloscopes without needing a software license.

The oscilloscope logic channels run at 5 Gsample/s, delivering time resolution of 200 ps. With a substantial memory depth of 125 Mpoints per channel, the sampling rate remains consistent over a large range of time base settings. Use logic triggering to isolate critical events like narrow glitches and specific pattern combinations.

In The Box:

• MXO 3 Oscilloscope (MXO38-1PK)

  • MXO3-PK1 Application bundle included

• 500 MHz 10X Passive Probe per channel

• Accessories Bag

• Quick Start Guide

• Power Cord
