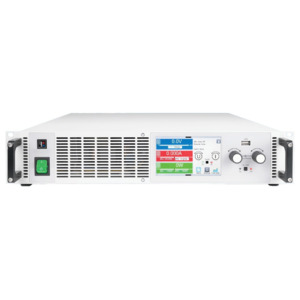

Programmable Regenerative Electronic DC Load, Rackmount, Series EA-ELR 10000 2U, Single Output, AC Input 1ph 100v-240v, 80 Vdc, 60 Adc, 1500W

Technical Specifications

• Power: from 0-1500 W to 0-30 kW
• Voltages: 0-80 V to 0-2000 V
• Current: 0-6 A to 0-1000 A

Highlights

• Autoranging
• Color Touchscreen
• Cost saving through high efficiency

Features

• Wide range input, 110 V - 240 V ±10 % 1ph AC
• Active Power-Factor-Correction, typical 0.99
• Regenerative with energy recovery into the grid
• Very high efficiency up to over 95 %
• Voltage from 0 - 80 V up to 0 - 1500 V
• Currents from 0 - 6 A up to 0 - 120 A
• Flexible power regulated DC input stages (autoranging)
• Regulation mode CV, CC, CP, CR with fast crossover
• Digital regulation, high resolution with 16bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
• Color 5" TFT display with touch control and intuitive user interface
• Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
• Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
• Integrated function generator with predefined curves
• Integrated battery test mode
• Photovoltaics test mode, MPPT
• Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

The device series from EA Elektro-Automatik ELR 10000 are programmable electronic loads. The device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The ELR 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 80 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device.The DC-Input operates as a flexible input stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide a load up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the ELR 10000 range. Furthermore, typical laboratory functionality is provided. This includes an estensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.

AC Connection
The electronic loads in the ELR 10000 series are equipped with an active PFC which provides a high efficiency at a low energy consuption. Furthermore, the devices in this series provide a wide AC input voltage range. This extends from 1-phase 110/120 V up to 240 V AC mains supply and 3-phase 208 V to 380 V, 400 V and 480 V AC mains supply. The devices can be operated in the majority of global mains supply. They adjust automatically, whitout additional configuration, to the available supply. In a 110/120 V and 208 V AC grid a derating of the output power is set

Energy recovering
The energy consumed in load mode is fed back into the connected mains supply with an efficiency of over 96 %. This reduces cost: as the energy is not converted to heat as in other loads, the energy costs are reduced. In addition, the devices generate less heat requiring less cost intensive air conditioning. One device is sufficient for the whole application, reducing investment and installation costs.
