RIGOL MHO934 Mixed Signal Oscilloscope, 4 Channel, 350MHz, 4GS/s, 100Mpts, 12 bit, MHO900 Series
Our Part #20019880
Condition:New
Mfr Part #MHO934
- Description
- Specifications
- Documents
MHO900 Series Digital Oscilloscopes, 12 Bit High Resolution for High Speed, High Accuracy Applications
Product Features
12-bit resolution
Max. 800 MHz analog bandwidth, 4 analog channels
16 digital channels, 200 MHz PLA2216 logic analyzer probe (optional)
Real-Time sample rate: up to 4 GSa/s
Max. memory depth of 500 Mpts (option)
Vertical sensitivity 200 µV/div to 10 V/div
Max. waveform capture rate: 1,000,000 wfms/s
Digital phosphor display with real-time 256-level intensity grading
Optional 2-channel, 50 MHz/100 MHz Function/Arbitrary Waveform Generator (Bode plot supported)
Supports histogram, digital signal analysis, etc.
Supports waveform search and navigation functions, capable of debugging the signal anomalies faster
7” (1024x600) HD touch screen
Flex knob brings user-friendly experience
Standard USB2.0 Device & Host, LAN (100M) and HDMI interfaces
Novel and delicate industrial design, easy to operate
Supports online upgrade of software version

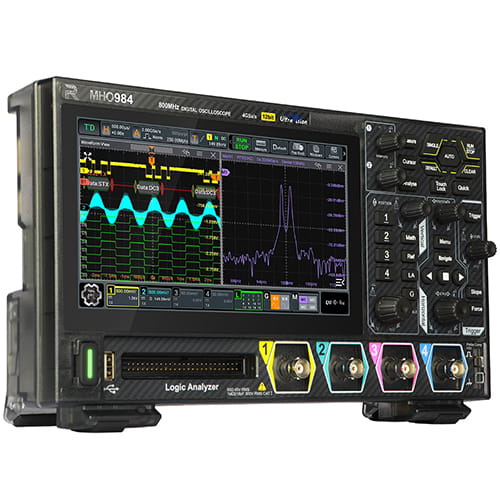

The MHO900 series is RIGOL’s newly launched economical oscilloscope. Compact in size, it features 1,000,000 wfms/s capture rate, max. memory depth of 500 Mpts (optional), 12-bit high resolution and low noise.
The product supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and science research fields.
High Performance Rebuilds the Entry-Level Standard
800 MHz BW & 4 GSa/s sample rate enable you to address the high-speed signal acquisition challenge.
12-bit high-precision ADC, 4096 vertical digitalizing levels, not missing any weak signals.
Max. 500 Mpts memory depth enables you to record high-speed and complex events, giving you full insight into the full details of high-speed signals.
Various protocol decodings.
N-in-one Integrated Efficient Test Tool

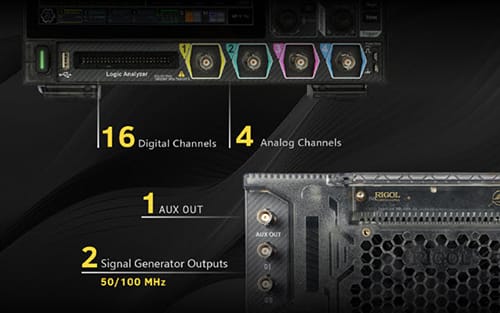

Standard 16 digital channels allows you to capture and analyze the digital signals with the analog signals.
Optional 2-channel, 100 MHz AFG option can output up to 100 MHz pure sine wave, with Bode plot supported for signal analysis.
Model | MHO98 | MHO984 | MHO954 | MHO934 |
|---|---|---|---|---|
No. of Analog Channels | 4 | |||
Bandwidth | 1 GHz | 800 MHz | 500 MHz | 350 MHz |
Max. Memory Depth | 500 Mpts | |||
Vertical Resolution | 12 Bit | |||
Waveform Capture Rate | 1000000 wfms/s | |||
Function/Arbitrary Waveform Generator (AFG) | 2-Channel, 100 MHz, 1 GSa/s (Opt.) | |||
Bode Plot | Sweep Range: 10 Hz to 30 MHz | |||
In The Box
Power Adapter Conforming to the Standard of the Destination Country
Ground Cable
USB Cable
PVP2350 - Qty 4 Passive Probes (350 MHz) (Standard Configuration for MHO934)
RIGOL MHO934 Oscilloscope FAQs
What is the RIGOL MHO934 oscilloscope best used for?
The RIGOL MHO934 is a strong choice for engineers, educators, and technicians who need a compact 350 MHz, 4-channel oscilloscope for embedded debugging, circuit validation, and everyday bench troubleshooting.
How does the 350 MHz bandwidth on the RIGOL MHO934 help with testing?
The 350 MHz bandwidth gives the MHO934 enough speed for many digital, analog, and mixed-signal designs while keeping the model positioned as the most cost-effective option in the MHO900 lineup.
What sample rate and memory depth does the RIGOL MHO934 support?
The MHO934 supports up to 4 GSa/s real-time sampling and deep memory options up to 500 Mpts, helping capture fast transitions and longer signal events without losing key details.
Does the RIGOL MHO934 provide high-resolution measurements?
Yes, the MHO934 uses 12-bit vertical resolution, which provides more waveform detail than traditional 8-bit oscilloscopes and helps reveal small signal changes, noise, and anomalies.
Can the RIGOL MHO934 be used for mixed-signal debugging?
Yes, the MHO934 includes four analog channels and can add 16 digital channels with the optional RIGOL PLA2216 logic probe, making it useful for embedded systems and serial bus troubleshooting.
What bus trigger/decode options are available for the RIGOL MHO934?
The MHO934 supports optional bus trigger/decode tools for I2S audio, CAN-FD automotive, FlexRay, and MIL-STD-1553 applications, helping users isolate protocol-level signal issues faster.
Can the RIGOL MHO934 be upgraded with an Arb/function generator and more bandwidth?
Yes, the MHO934 can add a 2-channel 50 MHz or 100 MHz function/arbitrary waveform generator option with Bode plot support and can be upgraded from 350 MHz to 500 MHz or 800 MHz.
