Digital Oscilloscope T3DSO700HD Series

• 12-bit Analog-Digital Convertors with sample rate up to 2 GS/s
• Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
• Four analog channels, up to 200 MHz bandwidth
• Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
• Supports 256-level intensity grading and color temperature display modes
• Up to 100 Mpts/ch record length
• Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN
• MSO – Optional 16 Channel Digital Analyzer available
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
• 4 Math traces (2 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• Optional 25 MHz waveform generator
• Interfaces include : USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.

The T3DSO700HD series employs the latest technology which features a maximum waveform capture rate of up to 120,000 wfm/s in normal mode and 500,000 wfm/s in Sequence mode, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the T3DSO700HD.

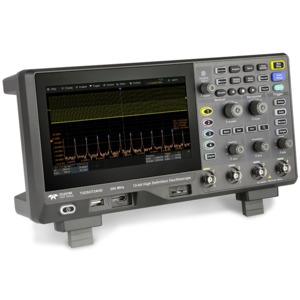

The 7’’ display capacitive touch screen supports multi touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN. T3DSO704HD 4 Channel 70 MHz T3DSO714HD 4 Channel 100 MHz T3DSO724HD 4 Channel 200 MHz Teledyne Test Tools T3DSO700HD Digital Oscilloscopes are available in bandwidths of 70 MHz, 100 MHz and 200 MHz, have maximum record length of 100 Mpts/ch, and display 4 analog channels + optional 16 digital channels mixed signal analysis ability.

In The Box

• Passive Probe x 4
• USB Cable Power Cord
• Quick Start Guide
• Certificate of Calibration
