Fluke FLK-393-IRR-TLPV PV Kit: IRR Meter, Clamp and Test Lead Set

Measuring PV Array Voltage And Current During Installation And Maintenance

The FLK-393-IRR-TLPV PV Kit is a complete solar testing kit featuring the Fluke 393 FC Clamp Meter, IRR1-SOL Irradiance Meter, and TLPV1 MC4 test leads for PV installations up to 1500 V DC. It measures DC voltage, current, irradiance, temperature, and tilt in one comprehensive toolkit.

FLK-IRR1-SOL Irradiance Meter Features

• Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
• Make instantaneous measurements to determine the watts per square meter solar irradiation, required by IEC 62446-1 standard
• High contrast LCD with large numbers for easy readability in direct sunlight
• Includes convenient carry case with shoulder strap

A Single-Handed Solution

Whether working on a roof-mounted system or on a large field installation, the FLK-IRR1-SOL is the single-handed solution that every solar installer and technician needs in their tool bag.

The FLK-IRR1-SOL is used to obtain the amount of solar irradiance necessary to calculate the IV curve of the power output. Validate that the panel or string of panels are outputting the correct voltage.

393 Clamp Features

• Measure safely with CAT III 1500 V rated clamp meter
• Thin jaw for access to cables in crowded combiner boxes
• View voltage and current simultaneously with the meter's dual display
• IP54 rated meter, ideal for work outdoors including PV panel testing
• DC power measurement, showing readings in kVA

*Note: Fluke Connect (FC) not included

Industrial Clamp Meter for PV Installations

The 393 CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely connect the MC4 test leads to the clamp meter to validate voltage and current from individual panels or a series of panels in a PV array. The inline capabilities of the MC4 PVLEAD3 leads allow the system to remain online and generating power while testing without needing to pierce the line.

TLPV1 Lead Features

• Use: Ensures safe PV measurements, compatible with 4mm sheathed banana plugs.
• Nickel Plated Contacts: Provides robust and reliable connections with minimal resistance and corrosion, ensuring long-term performance and accuracy.
• Lead Specifications: Includes 150 cm (59 inches) long test leads with color-coded black (female) and red (male) MC4 connectors for quick identification and usability.
• Official Staubli MC4 Connectors: Ensures high-quality and dependable connections for accurate measurement results.

Ensures Safe Measurements on PV Modules

The TLPV1 MC4 to 4mm Test Lead Set is essential for acquiring accurate and safe measurements in solar photovoltaic (PV) systems. Designed with black and red MC4 to 4mm banana plug test leads, this set ensures reliable connectivity and performance in various solar applications. Measurement and Troubleshooting: Facilitates connection of measuring devices to PV power plants, ideal for routine tests and troubleshooting on Staubli MC4-connected solar PV panels.

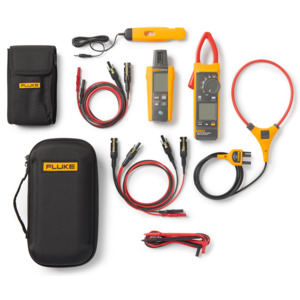

What's in the Box

• TLPV1 test lead set, black/red
• 393 clamp w/iflex
• FLK-IRR1-SOL solar irradiance meter w/temp probe
• Carry case
