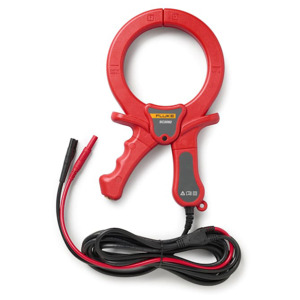

Fluke SC2082 Signal Clamp for Underground Utilities Locating

Features and Specifications

• Operating voltage: 0 to 600 V
• Output voltage/frequency tracing modes: 23V Rms At 8Khz; 30V Rms At 33Khz
• Safety compliance: IEC 61010-2-032, CAT IV 600V, 100A
• Provides an efficient and safe method of applying a locate signal to a cable
• Enables the Transmitter to induce a signal through the insulation into wires or pipes
• Used where not possible to gain access to cable for making an electrical contact or it is not safe to do so
• Clamp works on low impedance closed circuits only

The Fluke SC2082 Signal Clamp is used in situations where it is not possible to gain access to a cable for making an electrical contact or it is not safe to do so. The SC2082 Signal Clamp accessory provides an efficient and safe method of applying a locate signal to a cable, enabling the Fluke 2082 Transmitter to induce a signal through the insulation into the wires or pipes. The clamp works on low impedance closed circuits only. The SC2082 is already included with the 2082BT-P PREMIUM Underground Utilities Locator Kit.

What's in the Box

• SC2082 Signal Clamp
