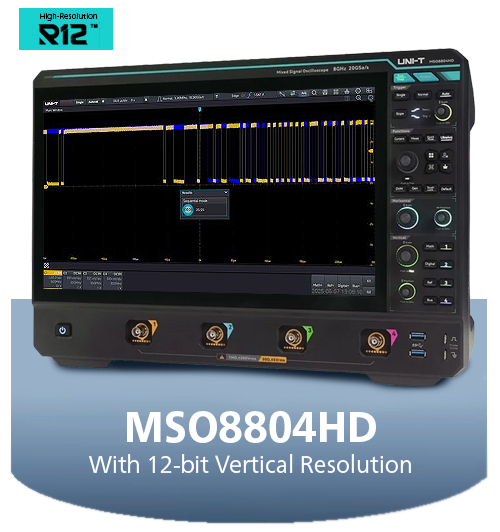

Uni-T MSO8804HD 8 GHz Mixed‑Signal Oscilloscope (MSO)

The UNI-T MSO8804HD represents a high-point in mixed signal oscilloscope technology, delivering professional-grade 8GHz bandwidth with 20GSa/s real-time sampling and industry-leading 12-bit vertical resolution. Engineered for the most demanding high-speed digital design and validation applications, the MSO8804HD combines exceptional signal fidelity with comprehensive protocol analysis capabilities.

Featuring an ultra-low noise floor of ≤800μV and 7-bit ENOB at full bandwidth, this flagship instrument delivers measurement accuracy that rivals oscilloscopes costing twice as much. With support for 21+ serial protocols, advanced jitter analysis, and automated compliance testing, the MSO8804HD is the definitive solution for semiconductor design, 5G communications, automotive electronics, and aerospace applications.

Key Features and Benefits

• 8GHz Analog Bandwidth: Full bandwidth available in optimized dual-channel mode (C1, C3, or C1+C3).

• 20GSa/s Sample Rate: Maximum performance in optimized dual-channel configuration for differential signal analysis.

• 12-bit Vertical Resolution: Superior 4096-level quantization reveals signal details missed by 8-bit scopes.

• Ultra-Low Noise Floor: Industry-leading ≤800μV noise enables measurement of weak signals.

• Up to 2Gpts Memory Depth: Capture long protocol sequences and intermittent events.

• 1M+ Waveform Capture Rate: Sequence mode delivers exceptional event detection capability.

• 21+ Protocol Analysis: Comprehensive serial bus decoding from embedded to aerospace standards.

• Hardware Jitter Analysis: Real-time eye diagrams and automated jitter decomposition.

• Multi-Instrument: Several test instruments in a single platform. Standard Spectrum Analyzer, Digital Voltmeter and Frequency Meter Function. Optional Arbitrary Waveform Generator, Logic Analyzer, and Protocol Analyzer.

• 15.6-inch FHD Touchscreen: Large capacitive display with gesture support and Windows OS.

• Advanced Mathematical Processing: Optional MATLAB programming and sophisticated filter design.

• Optional 60MHz AWG: Dual-channel arbitrary waveform generator with 625MSa/s output.

Specifications

• Bandwidth: 8GHz

• Sample rate: 20GSa/s

• Input channels: 4+16 (Optional Logic Analyzer)
  *requires probe UT-M15 sold separately.

• Vertical resolution: 12-bit (ERES 16bit)

• ENOB: 7-bit full-system bandwidth (50Ω, 50mV/div, -3dBFS)

• Inherent jitter: ≤150fs RMS

• SFDR (Typ.): ≥50dBc

• Noise floor (Typ.): ≤800μV (at 50mV/div and 8GHz bandwidth)

• Memory depth: 1Gpts (Standard), 2Gpts (Option)

• Waveform capture rate: Up to 1,000,000wfms/s

• Triggering types: Advanced triggering, protocol triggering, zone triggering

• Cross-platform access: Web server, mobile devices

• Advanced analysis tools: Power analysis kit, jitter analysis and eye diagram kit, limit template test kit, protocol analysis kit, and Ethernet consistency test kit

• Display: 15.6-inch HD touch screen

• Connectivity: USB Host 3.0×4, USB Device 3.0 × 1, TYPE-C×1, 10M Ref IN/Out, HDMI AUX In/Out, 10/100/1000LAN

• Warranty: 3 years standard

Integrated Tools

STANDARD

• Spectrum analyzer: Enhanced FFT

• Digital voltmeter: 4-digit, DC, AC RMS, DC AC RMS

• Digital frequency meter: 8-digit

• Limit template testing kit: Extreme test, standard template test

• Protocol analysis kit: RS232/422/485/UART, I2C, SPI, CAN, LIN

OPTIONAL
Supports Online Upgrades and Optional Software Licenses
(can be activated at any time):

• Protocol analysis kit: Option: CAN-FD, FlexRay, SENT, I3C, PSI5, USB2.0, PCIe2.0, 10/100Mb/s Ethernet, NRZ, Manchester, 8b/10b, SMBUS, SPMI, AudioBus (I2S, LJ, RJ, TDM), MIL-STD-1553, ARINC429

• Function/Arbitrary Waveform Generator: MSO8000HD-AWG

• Logic analyzer: MSO8000HD-LA

• Jitter analysis and eye diagram kit: MSO8000HD-JITTER

• Ethernet consistency analysis-100Base-Tx: MSO8000HD-CTS100

• USB2.0 consistency analysis: MSO8000HD-CTSUSB20

• Upgrade kit: MSO8000HD-BND

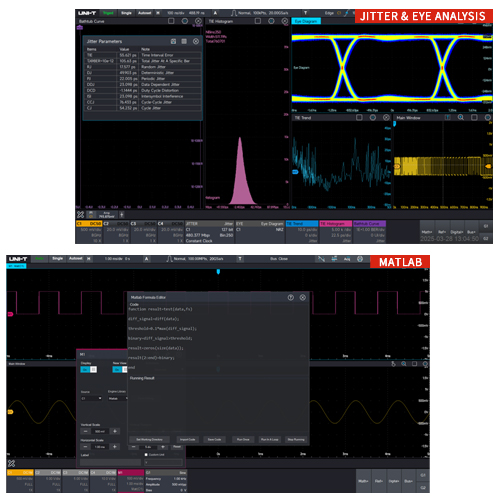

Jitter and Eye Diagram Analysis

Optional jitter analysis (MSO8000HD-JITTER) decomposes timing jitter into random and deterministic components, generates eye diagrams, and measures bit error rate. Essential for validating high-speed serial interfaces such as USB, PCIe, Ethernet, and custom links, where timing margins determine compliance.

Automated Compliance Testing

Optional compliance test packages automate the measurement sequences required for USB 2.0 and 10/100 Ethernet physical layer compliance. Predefined test plans guide the operator through setup, execute the measurements, and generate pass/fail reports which significantly reduce the time and expertise required for compliance verification.

MATLAB and Automation Integration

Optional MATLAB integration (MSO8000HD-MAT) enables scripted measurement workflows, custom analysis algorithms, and automated test sequences. Combined with SCPI control over USB and LAN, the MSO8804HD integrates into production test systems and research automation environments.

MSO8000HD Series

The MSO8000HD series includes two models with bandwidths of 8GHz and 5GHz, each featuring a standard 20GSa/s sampling rate, 12-bit vertical resolution, 4 analog channels, and 16 digital channel option. Depending on application requirements, users can select memory depths of either 1Gpts or 2Gpts. It also offers a comprehensive suite of hardware-accelerated and software-based analysis tools enabling flexible configuration.

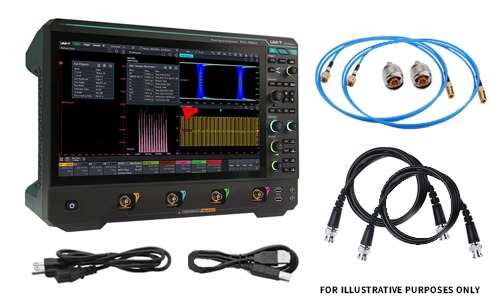

What's in the Box

• UNI-T MSO8804HD Mixed Signal Oscilloscope

• 2× UT-JLC12 SMA Cables (12GHz, 1m)

• 2× UT-KJG12 BNC to SMA Adapters (50Ω)

• 2× UT-L45 BNC-BNC Cables

• UT-D30 USB 3.0 Data Cable

• Front Panel Protective Cover

• Region-Specific Power Cord

• Calibration Certificate

Questions and Answers

Does the MSO8804HD include a signal generator?
The AWG is available as an optional software license (MSO8000HD-AWG). It provides a 50 MHz dual-channel function/arbitrary waveform generator enabling stimulus-response testing without external equipment.

Will the MSO8804HD give the full 8 GHz bandwidth on all four channels?
The full 8 GHz bandwidth is only available in optimized dual‑channel mode (C1, C3, or C1+C3). When all four channels are active, the bandwidth drops to 4 GHz.

How does the sampling rate behave with different channel configurations?
Short answer, 20 GSa/s is available only in optimized dual‑channel mode. With all four channels enabled the oscilloscope runs at 10 GSa/s, the MSO8804HD dynamically halves the sample rate when all channels are active.

What is the advantage of 12-bit resolution?
A 12‑bit ADC delivers 4,096 vertical quantization steps, far more than the 256 levels of an 8‑bit system, that's a 16x increase in resolution. This added precision makes it easier to see small signals riding on top of larger ones, cuts down on quantization noise, and boosts accuracy when measuring low‑level phenomena such as power‑supply ripple, sensor outputs, or other fine analog details.
