Preen ADG-L-30-340 DC Power Supply, 10kW, 30V, 340A, ADG-L Series

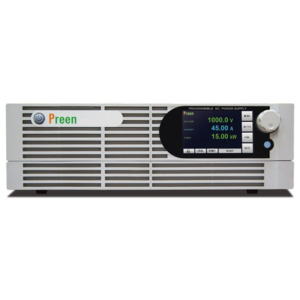

Preen ADG-L-30-340 Programmable DC Power Supply

The Preen ADG-L-30-340, part of the ADG-L Series, is a high-performance programmable DC power supply that delivers 10 kW of output power across a 0 to 30 V range with up to 340 A of current. Designed for demanding test environments, it combines high-power density, low noise, tight regulation, and stable DSP- and PWM-based control for reliable, repeatable output. With CV, CC, and CP operating modes, flexible remote-control options, and intuitive front-panel operation, the ADG-L-30-340 is built to support accurate DC power testing in laboratories, production lines, and automated test systems.

Key Benefits

• Compact 10 kW output in a high-power density design.
• Stable, accurate DC output with low noise, low ripple, and tight regulation.
• CV, CC, and CP operating modes for flexible test requirements.
• Intuitive operation with a 5-inch touch screen and rotary knob.
• Easy system integration through RS-232, RS-485, Ethernet, USB interfaces (GPIB and Analog optional).
• Built-in programming and simulation functions for voltage dropouts, spikes, sag, pulse, and waveform testing. Total of 5 groups and 99 sequences to set up voltage, current and time.
• Parallel operation supports higher output power and expanded system flexibility.
• Remote sensing to help maintain stable voltage at the load.
• Active power factor correction (PFC) up to 0.99 for improved efficiency and input performance.
• Comprehensive protection features to help safeguard both the power supply and the device under test including OVP, OCP, OPP, input OVP/UVP and OTP.
• Complimentary control software to configure sophisticated sequences, save/recall STEPs and generate test result reports.

Specifications

• Output power: 10 kW
• Output voltage range: 0 to 30 V
• Output current range: 0 to 340 A
• Input voltage: 187~264Vac (1 or 3 phase) or 340~460V (3 phase 4 wires Y connection)
• Form factor: 3U bench-style unit
• Programmability: Built‑in programmable sequence generator, slew rate, save/recall STEPs, Rise/Fall time, Master/Slave parallel, DC pulse and transient simulation
• Standards: CE and RoHS certified

ADG-L-30-340 Applications and Use Cases

The ADG-L-30-340 is ideal for applications that demand precise, stable low-voltage, high-current DC power. It supports testing across photovoltaic (PV) systems, electric vehicle (EV) components, battery charge simulation, DC/DC converter evaluation, fuse and contactor verification, and protection component validation such as air circuit breakers.

What's in the Box

• ADG-L-30-340 Programmable DC Power Supply

Preen ADG-L Series FAQ

1. What makes the ADG-L Series a strong choice for low-voltage, high-current testing?
   The ADG-L Series combines high power density, tight regulation, and low ripple performance to support demanding low-voltage, high-current applications with confidence. With models designed for protection component testing, AI server power modules, and other precision workloads, it delivers the stability and control needed for repeatable results.
2. Can the ADG-L Series be used in automated test systems?
   Yes. The ADG-L Series is equipped for easy integration into automated environments with standard RS-232, RS-485, Ethernet, USB, and Analog interfaces, plus optional GPIB for expanded connectivity. Remote programming, sequence control, and master/slave parallel operation help streamline setup and improve workflow efficiency.
3. Does the ADG-L Series support simulation and dynamic DC testing?
   Yes. Built-in programming and simulation functions make it easy to create dynamic voltage and current profiles, including sag, pulse, dropout, spike, rise, and fall events. This allows users to evaluate device behavior under changing conditions without relying on complex external programming.
4. Can the ADG-L Series be used in parallel and how many units are required?
   Yes, the ADG‑L Series supports parallel operation, allowing multiple units to be connected to increase total output power. Up to five units can be paralleled in a master/slave configuration, where one unit acts as the master and controls up to four slave units, automatically distributing settings and ensuring proper current sharing. This setup enables the system to scale up to as much as 75 kW of total output power using five 15 kW units.
