Keysight D9010JITO/R-B5P-001-A/R-B6P-001-L Infiniium Offline,EZJIT Complete Software, S Series

Our Part #2006301042538835

Mfr Part #D9010JITO/R-B5P-001-A/R-B6P-001-L

Keysight D9010JITO/R-B5P-001-A/R-B6P-001-L
Keysight
Keysight

Keysight D9010JITO/R-B5P-001-A/R-B6P-001-L Infiniium Offline,EZJIT Complete Software, S Series

Our Part #2006301042538835

Condition:New

Mfr Part #D9010JITO/R-B5P-001-A/R-B6P-001-L

$2,685.31EACH
Digital Product

Keysight D9010JITO/R-B5P-001-A/R-B6P-001-L Node-locked perpetual license with 12 months KeysightCare software support

The S-Series Analysis Applications from Keysight allow you to gain insight into the causes of signal jitter with full offline capability allowing you to test from simulation through silicon debug, and a power application to provide a full suite of power measurements that run directly to your oscilloscope

Key Features & Specifications

Jitter Analysis Provides

  • Automatic setup wizard for creating jitter histograms, trends, and spectrums
  • Automatic setup wizard for RJ/DJ separation via multiple algorithms, pattern lengths, BER levels
  • Multiple clock recovery methods
  • Calibration to remove RJ from oscilloscope

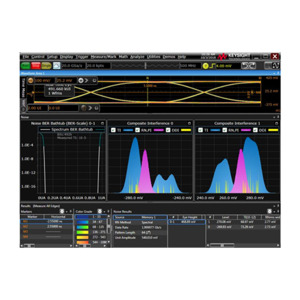

  • Composite histograms and graphs of separated RJ, PJ, DJ, DDJ, DCD and ISI jitter subcomponents
  • Composite histograms and graphs of separated TI, DDI, PI, ISI noise subcomponents
  • Spectral and noise BER bathtubs

Phase Noise Analysis Provides

  • Plotting Single Side Band (SSB) phase noise as log frequency vs dBc/Hz
  • Using 2 channels and cross-correlation to reduce broadband measurement noise
  • Measure phase noise of differential clocks with reduced broadband measurement noise
  • Measure phase noise of spread-spectrum modulated clocks
  • Reduce broadband noise (RJ) in cross-correlated time interval error (TIE) measurements
  • Measure integrated jitter between two frequencies on phase noise plot
  • Measure phase noise in circuit with InfiniiMax probes

Description

This is an advanced vertical noise, phase noise, and timing jitter test package option for D9010BSEO Infiniium Offline, which is a prerequisite for this application. View the datasheet to learn more.

With faster edge speeds and shrinking data valid windows in today's high-speed digital designs, insight into the causes of jitter has become critical for success. This jitter analysis software, combined with Keysight's Infiniium oscilloscopes, is a key tool for identifying and quantifying jitter components that affect the reliability of your design. Time correlation of jitter to the real-time signal makes it easy to trace jitter components to their sources. Additional compliance views and a measurement setup wizard now simplify and automate RJ/DJ separation for testing against industry standards.

This software automatically detects embedded clock frequencies and repetitive patterns of the data on the oscilloscope inputs and calculates the level of data-dependent jitter (DDJ) that is contributed to the total jitter (TJ) PDF by each transition in the pattern. It also comes with both spectral and tail-fit jitter separation algorithm.

Every waveform is different. As a result, having the flexibility of multiple jitter separation solutions means better answers for each individual waveform. Use the new tail-fit algorithm to properly identify and measure aperiodic bounded uncorrelated jitter, which is especially useful if the waveform is being influenced by cross-talk.

The Phase Noise analysis feature measures phase noise in a clock source. Phase noise measurement results are presented in a log frequency plot where the amplitude units are dBc/Hz (decibels relative to the carrier power normalized to a 1 Hz bandwidth). Phase noise is one of the most important figures of merit of a signal generating device and can be a limiting factor in a mission-critical application within aerospace and defense, as well as in communications.


BrandKeysight
SeriesS Series
