- Display: Bright VFD display

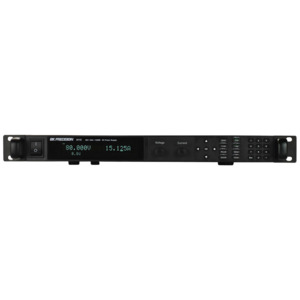

- Drill Down Description: 1200W Multi-Range 80V/60A DC Power Supply
- Model: 9115
- Output Current: 0–60A
- Output Voltage: 0–80V
- Programmable: Yes
- Description Price Table: Programmable DC Power Supply
- Dimensions L x W x H: 16.34inch x 19.68inch x 1.73inch
- PC Interface: Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI
- Power: 1200 W
- Primary Keyword: Power Supply
- Ripple ~ Noise: 20 Hz – 20 MHz
Can Replace Multiple Supplies on Your Bench or In Your Rack
- Description
- Output up to 1200 W within 80 V/ 60 A rating
- Compact, high density, 1U rackmount form factor
- High programming and readback resolution of 1 mV/1 mA
- Adjustable voltage rise and fall times
- Sequence programming (list mode)
- Store and Recall up to 100 instrument settings
- Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands for remote control
- Analog interface with control and monitoring functions
- Remote sense
- Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
Unlike conventional supplies with fixed output ratings, the 9115 automatically recalculates voltage and current limits for each setting, providing 1200 W output power in any Volt/Amp combination within the rated voltage (80 V) and current (60 A) limits. For benchtop applications, the 9115 provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands. Comes complete with User manual, power cord, certificate of calibration and test report.Click Here to learn more about B&K's 9115 Series Multi-Range Programmable DC Power Supplies
