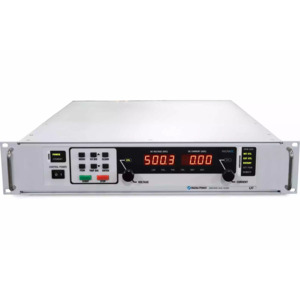

Magna-Power Model XR5-600/208+HS Specifications

• Max Voltage: 5 V
• Max Current: 600 A
• Output Power: 4kW

The Magna-Power XR Series power supplies are designed with a focus on exceptional reliability, offering leading-edge programmable power levels in a sleek, 2U (3.5-inch height) rack-mount format, with options ranging from 2 kW to 10 kW.

Featuring the broadest voltage range available in Magna-Power's product line, from 5 Vdc to 10,000 Vdc, these power supplies utilize the company's acclaimed current-fed power processing technology for optimal power conversion efficiency. Moreover, the XR Series includes precision programming and monitoring features, providing trustworthy power supply metrics and reducing the need for external power meters.

• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• RS232 Interface
• Ethernet and GPIB Available
• 0-10V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Remote Interface Software
• NI LabVIEW™ and IVI Driver
• Interlock Shutdown Input
• Designed and manufactured in the USA

• High Slew Rate Output (+HS)
• IEEE-488 GPIB Communications (+GPIB)
• LXI TCP/IP Ethernet Communications (+LXI)
• Ruggedized (+RUG)
