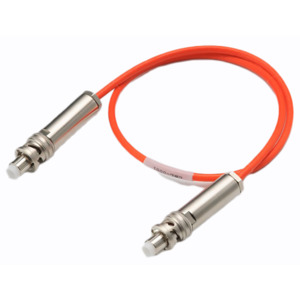

The Model HV-CA-554 is a high-voltage triaxial cable assembly that is terminated on either end with a male high-voltage triaxial connector.

You can use this cable assembly with the:

• Keithley Instruments Model HV-CS-1613 High-Voltage Triaxial Feedthrough Connector
• Keithley Instruments Model HV-CA-571-3 High-Voltage Triaxial Panel-Mount Cable
• Instruments and accessories with female high-voltage triaxial connectors

Electrical characteristics

• Rated voltage: 3300 V
• Rated amperage: 2.0 A
• Leakage current:
• Center to guard: < 100 x 10-12 A at 3000 V (see NOTE below)
• Guard to shield: < 100 x 10-9 A at 3000 V
• Full continuity:
• Center to center
• Guard to guard
• Shield to shield
• Dielectric breakdown voltage:
• Center/guard to shield: 5250 V
