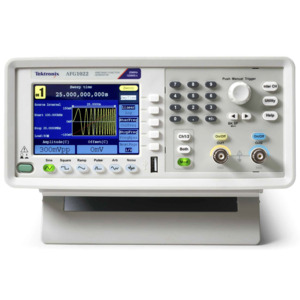

Arbitrary /Function Generator: 2Channel, 25MHz Bandwidth, 125MSa/s sampling rate, 8 kpoints arbitrary waveform memory, 14-bits vertical resolution, 3.9 Color LCD, 2U half rack, USB Host/Device
Specifications
Dual-channel, 25 MHz sine waveforms, 12.5 MHz square waveforms
14-bits, 125 MS/s arbitrary waveforms with 8 kpoints record length
Amplitude 1 mVp-p to 10 Vp-p into 50 Ω loads
Key Features
Continuous, sweeping, burst, and modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM) covers most requirements for students and other users to get the experiments/test job done
64-MByte internal non-volatile memory for arbitrary waveform storage
Built-in 200 MHz counter with 6-digit resolution offers an easy and precise way of frequency/period/pulse width/duty cycle measurement
Dedicated 3.95" TFT LCD display, easy-to-navigate front panel and menu
Standard USB host/device for memory expansion and remote control
Free ArbExpress makes user defined waveforms editing extremely easy through an external USB memory stick
Compatible with TekSmartLabâ„¢ for easy teaching and learning
Standard 5-year warranty
The AFG1000 Series Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes two models with dual channels, up to 60 MHz bandwidth and up to 10 Vp-poutput amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.
Applications
Electric and electronics experiments
Communications experiments
Sensor simulation
Functional test

Performance and Features
1 μHz to 25 MHz or 60 MHz sine waveform range, with 12-digit or 1 μHz resolution and a ±1 ppm drift high stability time base, provides great signal fidelity in the frequency domain. With 1 mVp-pto 10 Vp-p output amplitude range, and 14-bit or 1 mVp-presolution over the whole frequency range, there is no need to compromise between output amplitude and frequency any more.
Four different run modes cover most use cases with a cost effective solution. 50 most-frequently used standard and arbitrary waveforms are built-in for easy access. Up to 1 M points arbitrary waveforms memory enables users to replicate real world signals captured with a Tektronix oscilloscope or defined with ArbExpress. The built-in 200 MHz and 6-digit resolution frequency counter is an easy and precise way to measure frequencies/periods/pulse widths/duty cycles.
Ease of Use
The high-resolution 3.95-inch color TFT display shows relevant settings and parameters in both text and graphic formats, which give users full confidence in their settings, and let them focus on the task at hand. The front panel shortcut buttons and rotary knob make accesses to most frequently used functions and settings with minimum effort and time. The built-in 64-MByte non-volatile memory together with USB stick memory interface, provide unlimited space for user-defined waveform storage.
Software and Solutions
The user-defined arbitrary waveforms generated by the free ArbExpress software can easily be loaded on the AFG1000 with a USB memory stick.
As a building block of Tektronix educational solution, the AFG1000 can be embedded into TekSmartLab and enable a cost efficient and effective way of teaching, learning, and lab management.
Benefits
Generate more precise waveforms for more accurate lab result.
Generate all kinds of waveforms needed in a lab.
Provide easy access for users to conduct experiments.
Measure frequency/period/pulse width/duty cycle in a precise way without a standalone frequency counter.
Better user experience guaranteed by Tektronix quality and service.

AFG1022 |
AFG1062 |
|
---|---|---|
Analog Bandwidth |
25 MHz |
60 MHz |
Analog Channels |
2 Channel |
2 Channel |
Output Frequency |
1 uHz to 25 MHz |
1 uHz to 60 MHz |
Record Length |
8k points |
1M points |
Sample Rate |
125 MS/s |
300 MS/s |
Vertical Resolution |
14-bit |
14-bit |
In The Box
AFG1022 Arbitrary/Function Generator Safety and Compliance Instructions; printed document
AFG1022 Documentation CD containing the following PDF documents:
AFG1022 Arbitrary/Function Generators Quick Start User Manual, English
AFG1022 Arbitrary/Function Generators Quick Start User Manual, Simplified Chinese
AFG1022 Arbitrary/Function Generators Programmer Manual
AFG1022 Arbitrary/Function Generators Specifications and Performance Verification Manual
Packing list
Power cord, specified by country
Certificate of calibration ; printed document
USB cable x 1, Type A to Type B
BNC cable x 2
Tektronix Supplemental Information Sheet For the Peoples Republic of China: China RoHs; printed document
Fuse, cartridge; 5 x 20 mm, 0.5 A, 250 V, time-delay
Fuse, cartridge; 5 x 20 mm, 1 A, 250 V, time-delay
