Tektronix
Tektronix

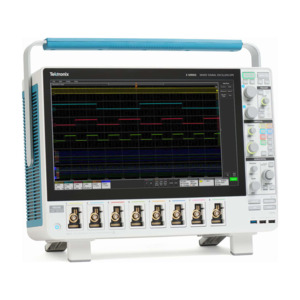

Tektronix TEK MSO58 5-BW-350 Mixed Signal Oscilloscope, 8 Channel, 350MHz, 6.25GS/s, 5 Series MSO

Our Part #25871.56

Mfr Part #TEK MSO58 5-BW-350

Tektronix TEK MSO58 5-BW-350
Tektronix
Tektronix

Tektronix TEK MSO58 5-BW-350 Mixed Signal Oscilloscope, 8 Channel, 350MHz, 6.25GS/s, 5 Series MSO

Our Part #25871.56

Condition:New

Mfr Part #TEK MSO58 5-BW-350

$28,080.00EACH

Condition:New

  • 350 MHz bandwidth
  • 8 Flex Channels
  • Each Flex Channel provides one analog signal or eight digital logic inputs with an optional TLP058 logic probe
  • Real time sample rate: 6.25 GS/s (all analog/digital channels)
  • Record length: 62.5Mpoints (expandable via option)
  • Waveform capture rate: > 500,000 waveforms/s
  • Vertical resolution: 12-bit ADC, up to 16-bit in High-Res mode
  • 15.6” capacitive touchscreen (1920 x 1080 resolution)
  • Digital voltmeter option provided free from Tektronix with product registration
  • Please note - this is part of the 5 Series, it is not 5 Series B

The 5 Series MSO offers better visibility into complex systems by offering four, six, and eight-channel models with a large 15.6-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance and to debug challenging system issues.

Please note, this oscilloscope is part of the Tektronix 5 Series, it is not 5 Series B.


BrandTektronix
Digital Channels64
Memory62.5 Mpts
TypeMSO
Vertical Resolution12 bit
Display Type15.6 TFT Capacitive Color Touch
Series5 Series MSO
$28,080.00EACH
