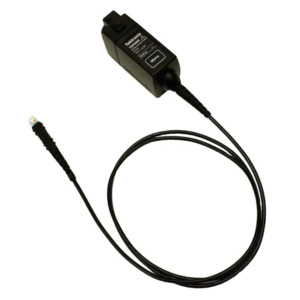

Tektronix TDP4000 Differential Probe, 4GHz, 5X, 0.3 pF, 15V, 100 kohm, TekVPI Interface, TDP Series

Our Part #25917.1

Mfr Part #TDP4000

Tektronix TDP4000
Tektronix
Tektronix

Tektronix TDP4000 Differential Probe, 4GHz, 5X, 0.3 pF, 15V, 100 kohm, TekVPI Interface, TDP Series

Our Part #25917.1

Condition:New

Mfr Part #TDP4000

$9,740.00EACH

TDP4000 Differential Probe

Features:

  • 4 GHz Probe Bandwidth
  • Maximum input voltage ±15 V (DC + pk AC)
  • Differential input capacitance ≤0.3 pF
  • Differential input resistance 100 kilohms
  • Common mode input range +5 V to -4 V
  • Excellent Common Mode Rejection
  • Low Capacitive and Resistive Loading
  • Compact Probe Head Size for Probing Small Geometry Circuit Elements
  • DUT Attachment Accessories Enable Connection to Fine Spaced SMDs
  • Connects Directly to Oscilloscopes Using TekVPI Probe Interface
  • Cable Length 48 in.

Included Accessories:

  • Certificate of Traceable Calibration Standard -1
  • Nylon carrying case - 1
  • Accessory kit containing:
    • Straight pins - 8
    • Longhorn VIA adapter - 2
    • 1 in. & 3 in. solder down -1 ea
    • Y-lead adapter - 1
    • Micro CKT test tip - 3
    • Tip saver - 1
    • 3-inch ground lead - 1
    • Marker band set (2 each of 5 colors) - 1

Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device under test connection capabilities, the TDP4000 Differential-Ended Active probe provides excellent high-speed electrical and mechanical performance required for today's digital system designs.

Specifically designed for use and direct connection to the TekVPI probe interface, the TDP4000 Differential probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:

  • DUT loading effects - Are reduced by lower input capacitance and high input resistance
  • DUT connectivity - A variety of accessories exist for attaching to small SMDs, some come standard or recommended
  • Maximizing of system (oscilloscope and probe) bandwidth - probing solutions for all measurements for TekVPI interface oscilloscope models up to 4 GHz

Powered directly by oscilloscopes with the TekVPI probe interface.


BrandTektronix
Bandwidth4 GHz
Attenuation5X
Input Capacitance0.3 pF
Input Impedance100 kΩ
InterfaceTekVPI
Cable Length48"
SeriesTDP Series
Operating Temperature Range0-40°C
Risetime0.115 ns
TypeDifferential Probe
Warranty1 Year
