Fluke-N4K 1PP42 High-Precision Power Analyzer

Features and Specifications

• Number of phases: 1
• Power phases type: PP42
• Bandwidth: dc to 3 MHz or dc to 10 MHz depending on input module
• Sampling Rate: 0.33 MHz or 1 MHz depending on input modules
• Voltage Input Range: 0.3 to 1000 V
• Measured data memory: 4 MB
• Memory for Settings: Standard
• Fast Fourier Transformation (FFT): To the 40th harmonic
• RS232 Interface: Standard
• Fluke NormaView PC Software (for data download, analysis): Standard

Modular Power Phases

Ideal for field testing, the Fluke Norma 4000 power analyzer offers easy and straight-forward operation. Features include: 1 to 3 power phases, 5.7 inch / 144 mm color display, harmonic analysis, FFT analysis, scope mode, vector diagram display, recorder function, Fluke NormaView PC software, and 4 MB RAM data memory.

Users can select the type of power phase best suited for their application from a variety of optional power phases. Specifi cations vary depending on the model of the power phase.

Each modular plug-in power phase consists of a voltage and a current measurement channel. Each measuring channel is available for each basic unit. However, only one kind of channel can be used per unit (see standard confi gurations).

Applications

• Electric motors
• Inverter drive systems
• Lighting systems
• Transformers
• Automotive
• Switching power supplies and UPS
• Charge pumps/boost converters
• Current transducers
• Calibration and test laboratories

What's in the Box

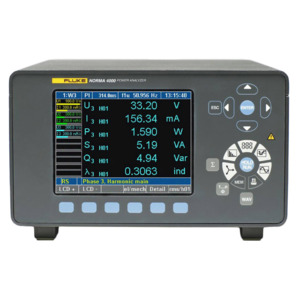

• Norma 4000 High Precision Power Analyzer
• Power supply cable
• 5.7 inch / 144 mm Color display
• RS232/USB interface for data download
• Space for three power-phases and options
• Fluke NormaView PC software
• Color user’s manual
• Test certificate with measurement values full point is : Test certifi cate with measurement values
