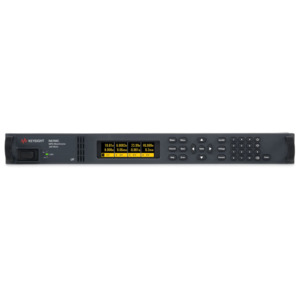

Certified Pre-owned: N6700C Power System Mainframe (only) w/ Rack Mount

Features

• N6700C Power System Mainframe holds 1 to 4 modules (not included), 400 W total
• Choose from more than 30 different dc power modules
• Programmable voltage and current
• Fast command processing time
• Outputs can be connected in parallel or series
• Programmable overvoltage & overcurrent protection
• 10 store-recall states, output sequencing
• Oscilloscope-like digitizer & ARB output (Power Module dependent)
• Streamline tasks with front panel control and advanced programmable including automated sequencing of up to 512 output settings
• Synchronize to other events in your ATE system with advanced hardware and software triggering
• GPIB (SCPI), USB 2.0, LAN
• LXI Class C Compliant
• Universal AC input, power factor correction
• Small size - Only 1.75 inches (1U) of rack space
• N6709C rack mount included
• Power Modules for the N6700 Modular Power System sold separately

Keysight N6700C is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700C offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 30 different DC power modules, ranging in capability from basic to high precision.

Power Management Feature Allows You Allocate Mainframe Power
Often, a DUT requires a single high power DC source and several very low power DC sources. For example, if your DUT requires 280 W on its main input, and 10 W each on three auxiliary inputs, you can configure a system consisting of one 300 W DC module and three 100 W DC modules. Even though the sum of the module power is 600 W, you can still use the N6700C 400 W mainframe. Thanks to the power management feature, you can allocate the full 300 W to the 300 W module while you allocate only 33 W to each of the 100 W modules.

Connectivity
The N6700 MPS comes standard with GPIB, USB 2.0, and 10/100 Base-T Ethernet LAN interfaces. While GPIB is best suited for use with existing systems, Keysight offers USB and LAN to allow you to take advantage of the availability, speed, and ease-of-use of common computer industry standard interfaces. The N6700 is fully compliant with the LXI Class C specification. The N6700 can be controlled via a standard web browser. The N6700 contains a web server that provides web pages for monitor, control, and setup of the MPS.

Front Panel
In addition to full control over its three standard interfaces, the N6700 has a full featured front panel to permit easy manual operation for test prototyping, debugging, and troubleshooting when used in an ATE system. You can have confidence that the N6700 is working properly because you can view the settings and actual output values on all four outputs at the same time.

High-Speed Test Extensions
To make your testing go even faster, the N6700 DC power modules offer HighSpeed Test Extensions (HSTE). This enhancement to the DC power modules extends the capabilities to include features similar to a built-in arbitrary waveform generator and a built-in oscilloscope. HSTE is optional on the N6730/40/50/70 DC power modules (option 054). HSTE is standard on the N6760 precision DC power modules, the N6780 SMU modules, the N6783 application-specific modules, and the N6790 Electronic Load series modules.

The Keysight N6709C Rack Mount Kit - provides all the necessary hardware to rack mount one N6700C, N6701C, or N6702C modular system power supply in 1 U rack space. This rackmount kit includes front rack ears and rear supports that take the place of standard rack rails or slides. Note Standard rack rails and slides are not compatible with the N6700 Series as they block the air inlets on the side of the mainframe.
