Keysight N6702C Power System Mainframe, Holds 1-4 Modules, 600W, 120VAC, N6700 Series
Our Part #26211.1
Condition:New
Mfr Part #N6702C
- Description
- Specifications
- Documents
Keysight N6702C Power System Mainframe

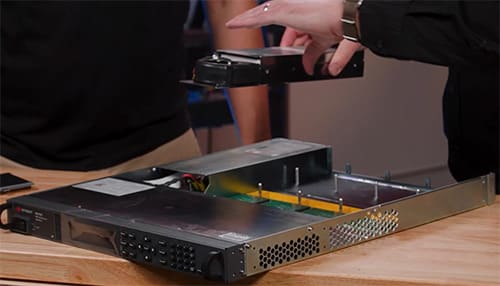

The Keysight N6702C is a low-profile modular power system mainframe designed for scalable and flexible DC power delivery in test and measurement applications. It supports up to four interchangeable DC power modules (sold separately), enabling engineers to customize performance, precision, and output requirements within a single chassis.
With a compact 1U rackmount design and 600W total output capacity, the N6702C is optimized for automated test equipment (ATE), product validation, and lab environments where space efficiency and flexibility are critical.
Key Features
N6702C Power System Mainframe holds 1 to 4 modules
600 W total when operating from 100 - 120 VAC input
Choose from more than 30 different dc power modules (sold separately)
Programmable voltage and current
Fast command processing time
Outputs can be connected in parallel or series
Programmable overvoltage & overcurrent protection
10 store-recall states, output sequencing
Oscilloscope-like digitizer & ARB output (with N6750/60 Power Modules)
Streamline tasks with front panel control and advanced programmable including automated sequencing of up to 512 output settings
Synchronize to other events in your ATE system with advanced hardware and software triggering
GPIB (SCPI), USB 2.0, LAN / LXI Class C Compliant
Universal AC input, power factor correction
Small size - Only 1.75 inches (1U) of rack space
Power Modules for the N6700 Modular Power System

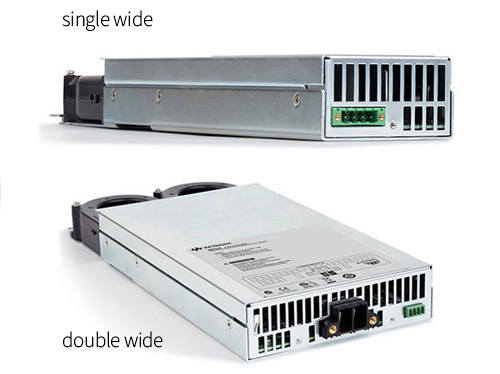

The Keysight DC Power Modules offer a broad range of power levels, from 20 W to 500 W, along with diverse voltage and current combinations. This flexibility allows you to balance performance, cost, and power to meet your specific test requirements.
Designed for seamless integration into automated test environments, each Keysight DC power module features built-in voltage and current measurement to simplify wiring and reduce system complexity. For enhanced DUT protection, every module includes over-voltage, over-current, and over-temperature safeguards, along with the ability to detect fault conditions in neighboring channels within 10 microseconds, enabling rapid system shutdown when needed.
| Model | Power (W) | Max V (V) | Max I (A) | # of Outputs | # of Slots Occupied | # of Ranges | Ripple & Noise | Accuracy % + mV | Transient Response (μs) |
|---|---|---|---|---|---|---|---|---|---|
| DC ELECTRONIC LOADS - N6790 Series | |||||||||
| N6791A | 100 | 60 | 20 | 1 | 1 (single wide) | 1 | 5 mVrms | 25.2 | |
| N6792A | 200 | 60 | 40 | 1 | 2 (double wide) | 1 | 5 mVrms | 25.2 | |
| BASIC MODULES - N6730, N6740 & N6770 Series | |||||||||
| N6731B | 50 | 5 | 10 | 1 | 1 (single wide) | 1 | 10 mVp-p | 0.1 + 19 | < 200 |
| N6732B | 50 | 8 | 6.25 | 1 | 1 (single wide) | 1 | 12 mVp-p | 0.1 + 19 | < 200 |
| N6733B | 50 | 20 | 2.5 | 1 | 1 (single wide) | 1 | 14 mVp-p | 0.1 + 20 | < 200 |
| N6734B | 50 | 35 | 1.5 | 1 | 1 (single wide) | 1 | 15 mVp-p | 0.1 + 35 | < 200 |
| N6735B | 50 | 60 | 0.8 | 1 | 1 (single wide) | 1 | 25 mVp-p | 0.1 + 60 | < 200 |
| N6736B | 50 | 100 | 0.5 | 1 | 1 (single wide) | 1 | 30 mVp-p | 0.1 + 100 | < 200 |
| N6741B | 100 | 5 | 20 | 1 | 1 (single wide) | 1 | 11 mVp-p | 0.1 + 19 | < 200 |
| N6742B | 100 | 8 | 12.5 | 1 | 1 (single wide) | 1 | 12 mVp-p | 0.1 + 19 | < 200 |
| N6743B | 100 | 20 | 5 | 1 | 1 (single wide) | 1 | 14 mVp-p | 0.1 + 20 | < 200 |
| N6744B | 100 | 35 | 3 | 1 | 1 (single wide) | 1 | 15 mVp-p | 0.1 + 35 | < 200 |
| N6745B | 100 | 60 | 1.6 | 1 | 1 (single wide) | 1 | 25 mVp-p | 0.1 + 60 | < 200 |
| N6746B | 100 | 100 | 1 | 1 | 1 (single wide) | 1 | 30 mVp-p | 0.1 + 100 | < 200 |
| N6773A | 300 | 20 | 15 | 1 | 1 (single wide) | 1 | 20 mVp-p | 0.1 + 20 | < 250 |
| N6774A | 300 | 35 | 8.5 | 1 | 1 (single wide) | 1 | 22 mVp-p | 0.1 + 35 | < 250 |
| N6775A | 300 | 60 | 5 | 1 | 1 (single wide) | 1 | 35 mVp-p | 0.1 + 60 | < 250 |
| N6776A | 300 | 100 | 3 | 1 | 1 (single wide) | 1 | 45 mVp-p | 0.1 + 100 | < 250 |
| N6777A | 300 | 150 | 2 | 1 | 1 (single wide) | 1 | 68 mVp-p | 0.1 + 150 | < 250 |
| HIGH-PERFORMANCE MODULES - N6750 Series | |||||||||
| N6751A | 50 | 50 | 5 | 1 | 1 (single wide) | Auto-ranging | 4.5 mVp-p | 0.06 + 19 | < 100 |
| N6752A | 100 | 50 | 10 | 1 | 1 (single wide) | Auto-ranging | 4.5 mVp-p | 0.06 + 19 | < 100 |
| N6753A | 300 | 20 | 50 | 1 | 2 (double wide) | Auto-ranging | 5 mVp-p | 0.06 + 10 | < 100 |
| N6754A | 300 | 60 | 20 | 1 | 2 (double wide) | Auto-ranging | 6 mVp-p | 0.06 + 25 | < 100 |
| N6755A | 500 | 20 | 50 | 1 | 2 (double wide) | Auto-ranging | 5 mVp-p | 0.06 + 10 | < 100 |
| N6756A | 500 | 60 | 17 | 1 | 2 (double wide) | Auto-ranging | 6 mVp-p | 0.06 + 25 | < 100 |
| PRECISION MODULES - N6760 Series | |||||||||
| N6761A | 50 | 50 | 1.5 | 1 | 1 (single wide) | Auto-ranging | 4.5 mVp-p | 0.016 + 6 | < 100 |
| N6762A | 100 | 50 | 3 | 1 | 1 (single wide) | Auto-ranging | 4.5 mVp-p | 0.016 + 6 | < 100 |
| N6763A | 300 | 20 | 50 | 1 | 2 (double wide) | Auto-ranging | 5 mVp-p | 0.03 + 5 | < 100 |
| N6764A | 300 | 60 | 20 | 1 | 2 (double wide) | Auto-ranging | 6 mVp-p | 0.03 + 12 | < 100 |
| N6765A | 500 | 20 | 50 | 1 | 2 (double wide) | Auto-ranging | 5 mVp-p | 0.03 + 5 | < 100 |
| N6766A | 500 | 60 | 17 | 1 | 2 (double wide) | Auto-ranging | 6 mVp-p | 0.03 + 12 | < 100 |
What's Included
N6702C Low-Profile Modular Power System Mainframe, 1200W, 4 Slots
KeysightCare Technical Support - 3 years
Return to Keysight Warranty - 3 years
N6702C FAQ
What makes the N6702C popular for ATE applications?
The N6702C combines up to four outputs in a compact 1U rack-mount form factor, delivers up to 1200 W total output power (with option 904 US 240V cord), and offers flexible module selection, integrated measurement capabilities, and high-speed system communication. These features make it a popular choice for automated test equipment (ATE), design validation, manufacturing test, and R&D applications.Can the N6702C outputs be connected in series or parallel?
Yes. The N6702C supports power modules whose outputs can be connected in series to increase voltage or in parallel to increase current, depending on the application and module specifications. This flexibility allows engineers to configure the power system for a wider range of DUT requirements without adding additional power supplies.Does the N6702C include measurement and data-logging capabilities?
Yes, measurement capabilities are provided through the installed N6700 Series power modules. Depending on the module selected, users can monitor voltage, current, and power, while advanced modules offer features such as high-speed digitizing, waveform capture, arbitrary waveform generation, and precision current measurements. The system also integrates with Keysight BenchVue software for instrument control, data logging, and test automation.
