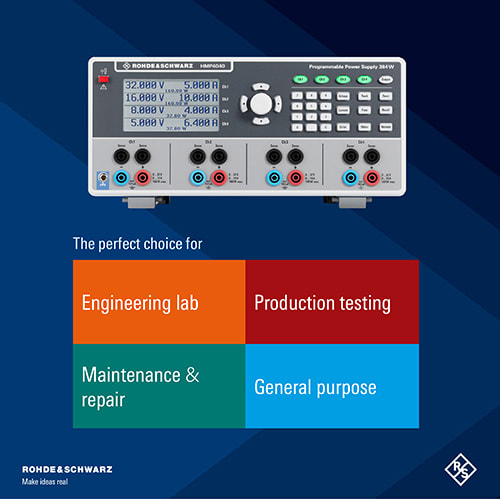

Rohde & Schwarz HMP Series - HMP4040 Power Supply

A performance power supply from R&S Essentials

The R&S HMP power supplies are primarily designed for industrial use. With up to four output channels and up to 10 A output current per channel, these rugged instruments are ideal for a wide variety of applications. They offer high efficiency with low residual ripple and many protection functions.

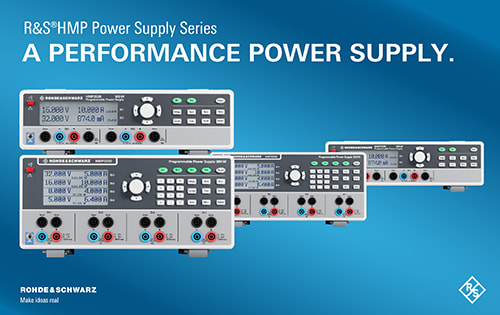

The R&S HMP power supply family consists of four models. The R&S HMP2020 two-channel power supply and the R&S HMP2030 three-channel power supply deliver up to 188 W total output power, the three-channel R&S HMP4030 and the four-channel R&S HMP4040 offer a maximum output power of 384 W. The total load can be distributed as desired over the separate channels. Depending on the model, up to 80 W or 160 W of channel power is available – in any voltage/current distribution.

Key facts:

• 4 channels with max. 384 W total output power

• Maximum output current per channel: 10 A

• Maximum output power per channel: 160 W

• Maximum output voltage of 32 V per channel; higher voltages possible in serial operation

More than meets your daily needs

• All channels galvanically isolated and floating

• All channels have the same voltage range

• All channels have overload and short-circuit protection

• Parallel and serial operation

• Constant voltage and constant current modes

• Tracking and link functions

• Protection functions to safeguard instrument and DUT

• Modern instrument concept: small, compact and quiet

Easy operation

• Intuitive use

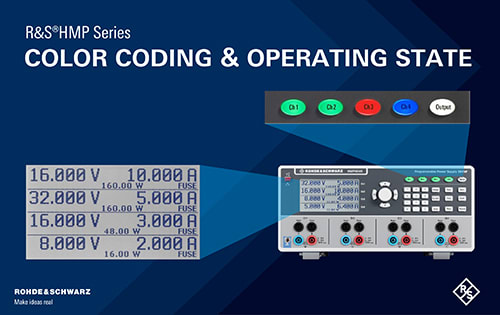

• Color coding of operating states

• EasyArb function for all channels

• Save and recall instrument settings

Ideal for labs and test systems

• Tailored for use in labs and system racks

• Remote sensing for more stringent accuracy requirements

• Connections on front and rear panels

• Remote control of instrument functions

In The Box

• R&S HMP4040 Power Supply

• Quick start guide

• Set of power cables

• Three-year warranty
